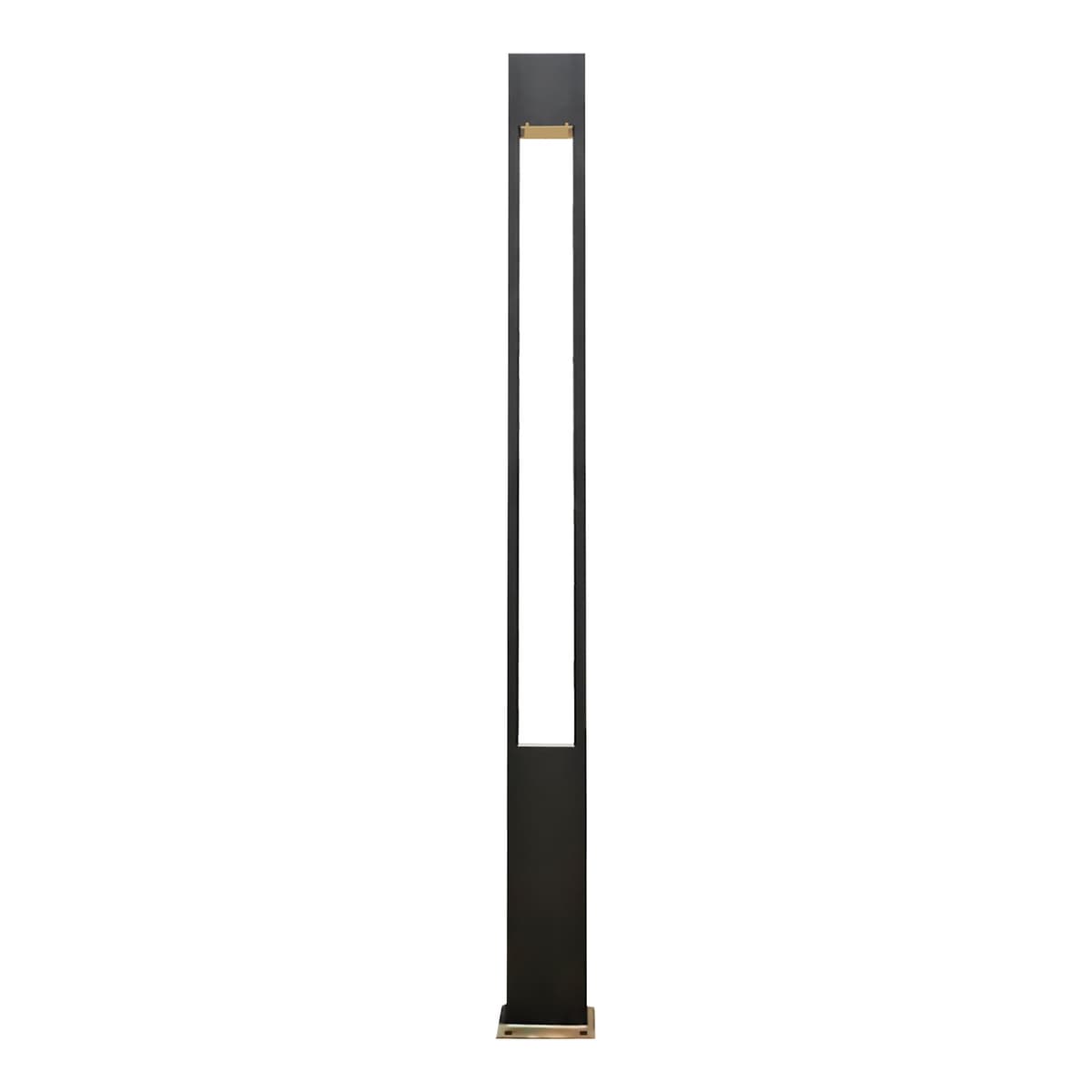

Square Column Light
With our continued development of products, investment in the latest design and development, we have sustained our position as a leading lighting solution provider. Eveready presents an elegant LED column light which is suitable for both modern and classic architecture. LED Square columnar light pole with 1.5 m long light engine to illuminate with a soothing light onto roads, pathways and gardens.
Applications
PathwaysGarden LightingResidentialArchitectural
Features
Square light output.Sleek design with light soothing to the eye.Architectural light with pole mounting.
Specifications
| Housing & Finish | Mild steel housing with epoxy grey powder coating |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 4.5 kV |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 240V AC |
| Average life span at L70B50 | 25000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | As in diagram - four foundation bolts needed |
| Ingress protection & Impact resistance | IP65, IK05 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot |
|---|---|---|---|---|---|---|
| On Request | DCL3040I3-01 | 40 | 3000K | >70 | 3200 | 1 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
