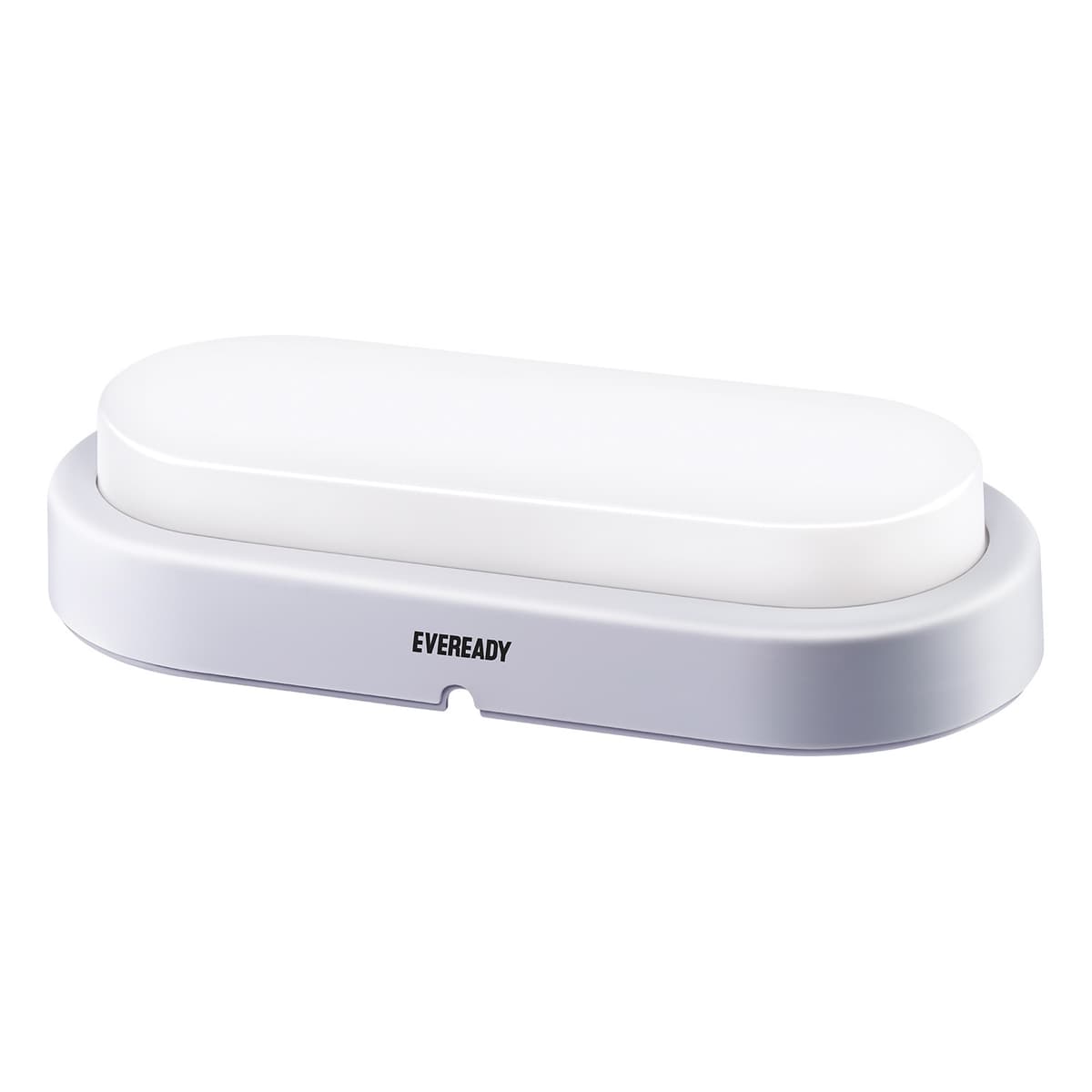

Skith
LED bulk head made with injection moulded polycarbonate material and with UV stabilised opal acrylic diffuser for smooth & spotless lighting, highly durable with IP65 degree of protection and impact resistance of IK-08
Applications
Wall Lights StarecaseGarden LightsCourtyardParkingIndustrial corridors
Features
Non yellowing type UV stabilised opal PC diffuser for soothing spotless lighting.Provision for wall & surface mounting for various applications.Injection moulded polycarbonate with snap fit screw less arrangement.
Specifications
| Housing & Finish | Polycarbonate Injection moulded housing with white finish |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 15% |
| Surge Protection | Up to 2.5kV |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 36000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Surface, Wall |
| Ingress protection & Impact resistance | IP65, IP66, IK08 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6G4D578SF10 | LEDBK010I5-01 | 10 | 5700K | >80 | 950 | 10 | 0.36 |
| On Request | LEDBK010I5-02 | 10 | 5700K | >80 | 950 | 10 | - |
