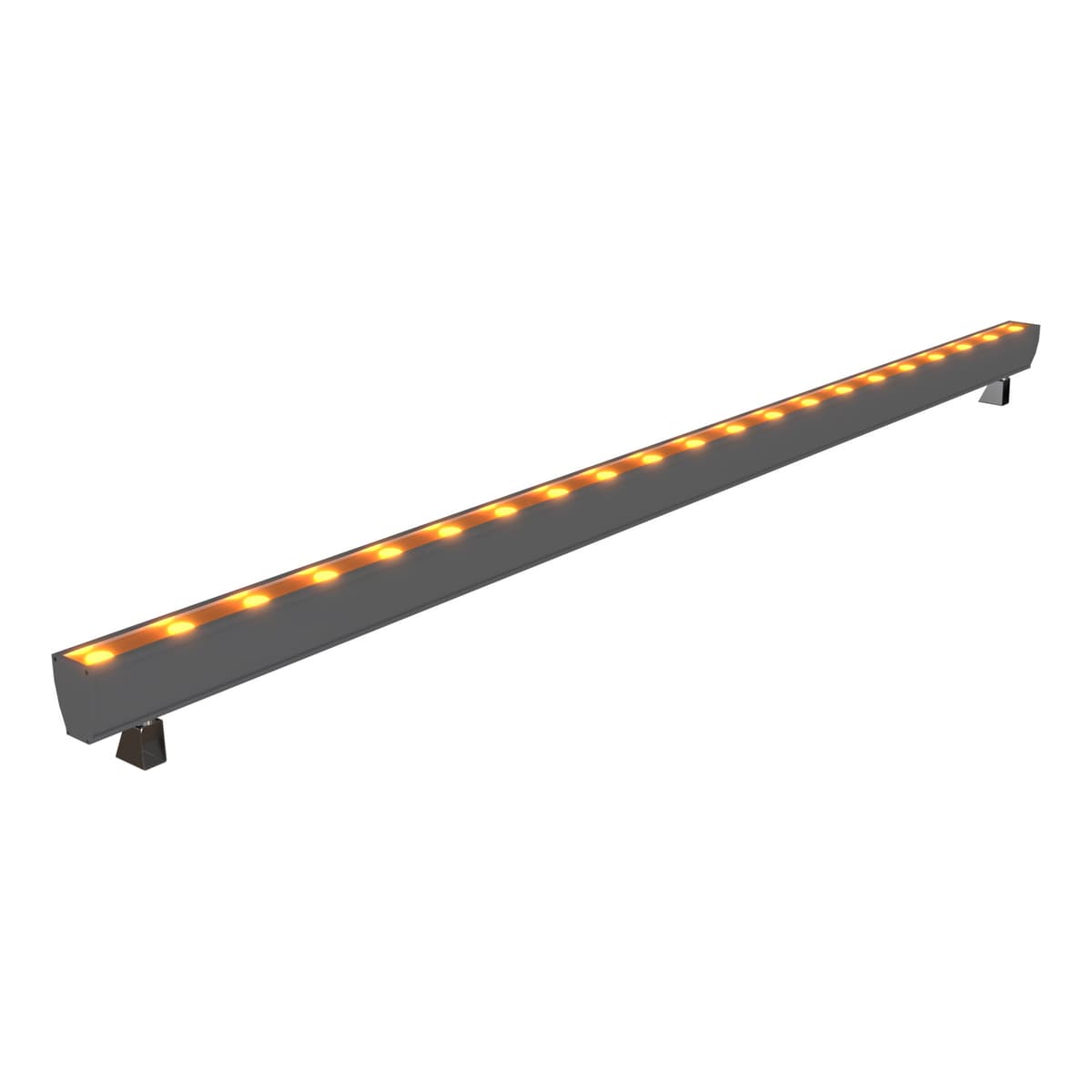

Aristrocrat F-24W
Our Linear Wallwasher is a highly efficient luminaire specifically designed for highlighting building facades. It can also be used to add an artistic flair to exteriors by incorporating shadows and up-lighting for pillars and columns.
The Eveready Advantage
This luminaire is energy-efficient, long-lasting, and produces a bright and focused light.It comes standard with a 25-degree beam angle but can be customized to 15 degrees or 45 degrees.Used to highlight outdoor facade, architectural wall area outdoor or indoor.It is suitable for both outdoor and indoor applications.
Features
This luminaire is energy-efficient, long-lasting, and produces a bright and focused light.It comes standard with a 25-degree beam angle but can be customized to 15 degrees or 45 degrees.Used to highlight outdoor facade, architectural wall area outdoor or indoor.It is suitable for both outdoor and indoor applications.
Specifications
| Housing & Finish | Aluminium |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 4kV |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 50000 |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Surface Mounting |
| Ingress protection & Impact resistance | IP66, IP66, IK07 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6S5W308FD24 | LEDLW024I3-01 | 21 | 3000K | >70 | 2400 | 2 | 2.7 |
| 6S5W308FB40 | LEDLW040I3-01 | 40 | 3000K | >70 | 4000 | 2 | 2.7 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
