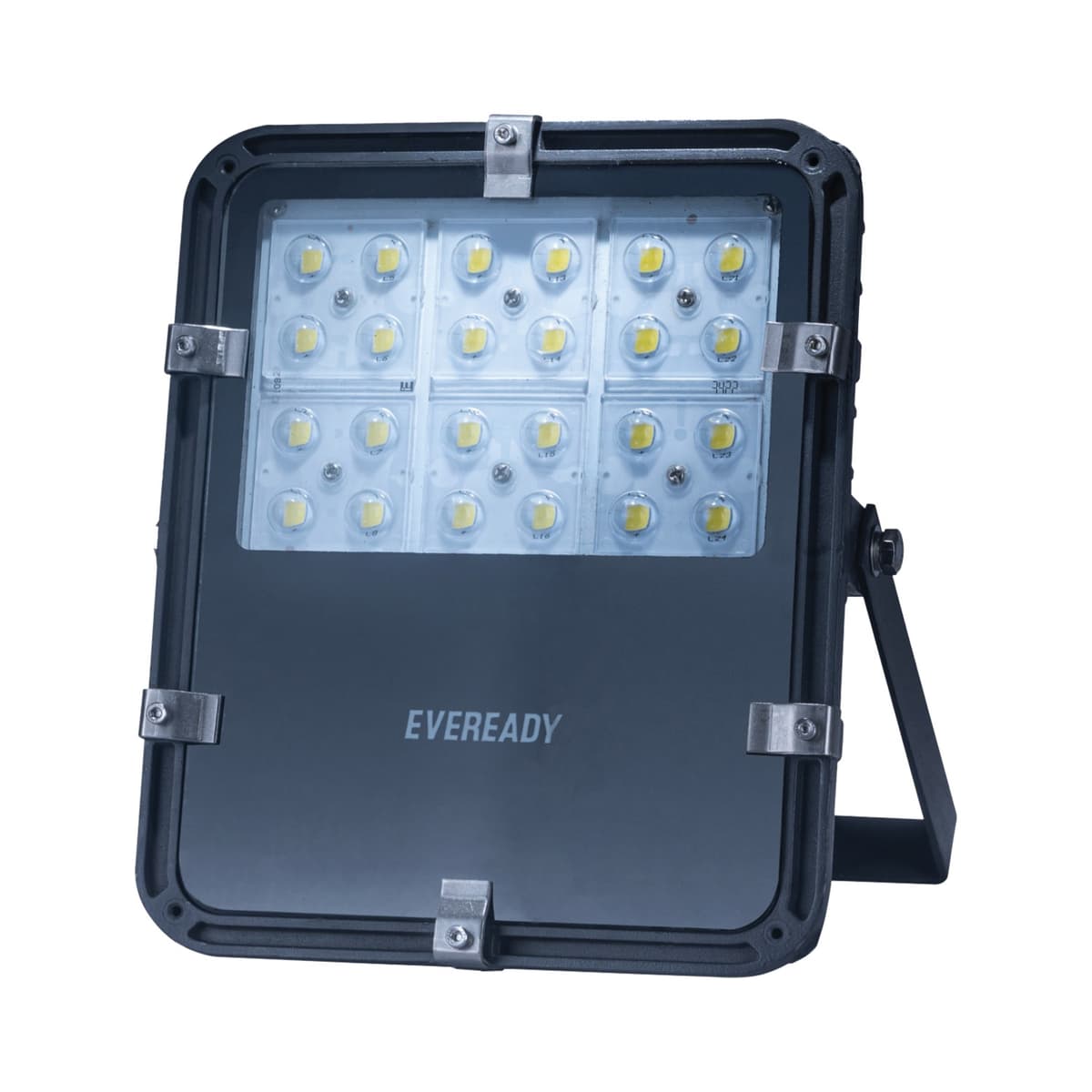

Performax L
LED Flood Light with pressure die-cast aluminium housing with heat resistant clear toughened glass diffuser fixed along with silicon gasket with the help of clamps. Flood light is with Epoxy grey powder coated finish for better aesthetics. Mounting bracket provided for installation, IP66 degree of protection and impact resistance of IK-07, integrated driver with 5kV internal and 10kV external surge protection.
Applications
JunctionsAirport ApronsMaterial Handling YardsArea Lighting-MastsSports LightingRailway Yards
Features
Higher efficacy with 110lm/W delivered.Single piece of pressure die-cast aluminium housing for better heat dissipation.Secondary optics for better control over distribution.
Specifications
| Housing & Finish | Pressure die-cast aluminium housing with epoxy grey powder coating finish |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 5kV inbuilt and 10kV external |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 50000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Bracket mounting with cradle |
| Ingress protection & Impact resistance | IP66, IK07 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| On Request | LEDFL080I5-03L | 80 | 5700K | >70 | 8800 | 2 | 2.3 |
| On Request | LEDFL100I5-03L | 100 | 5700K | >70 | 11000 | 2 | 2.35 |
| On Request | LEDFL120I5-03L | 120 | 5700K | >70 | 13200 | 2 | 2.4 |
| On Request | LEDFL150I5-03L | 150 | 5700K | >70 | 16500 | 1 | 3.9 |
| On Request | LEDFL200I5-03L | 200 | 5700K | >70 | 22000 | 1 | 4.0 |
