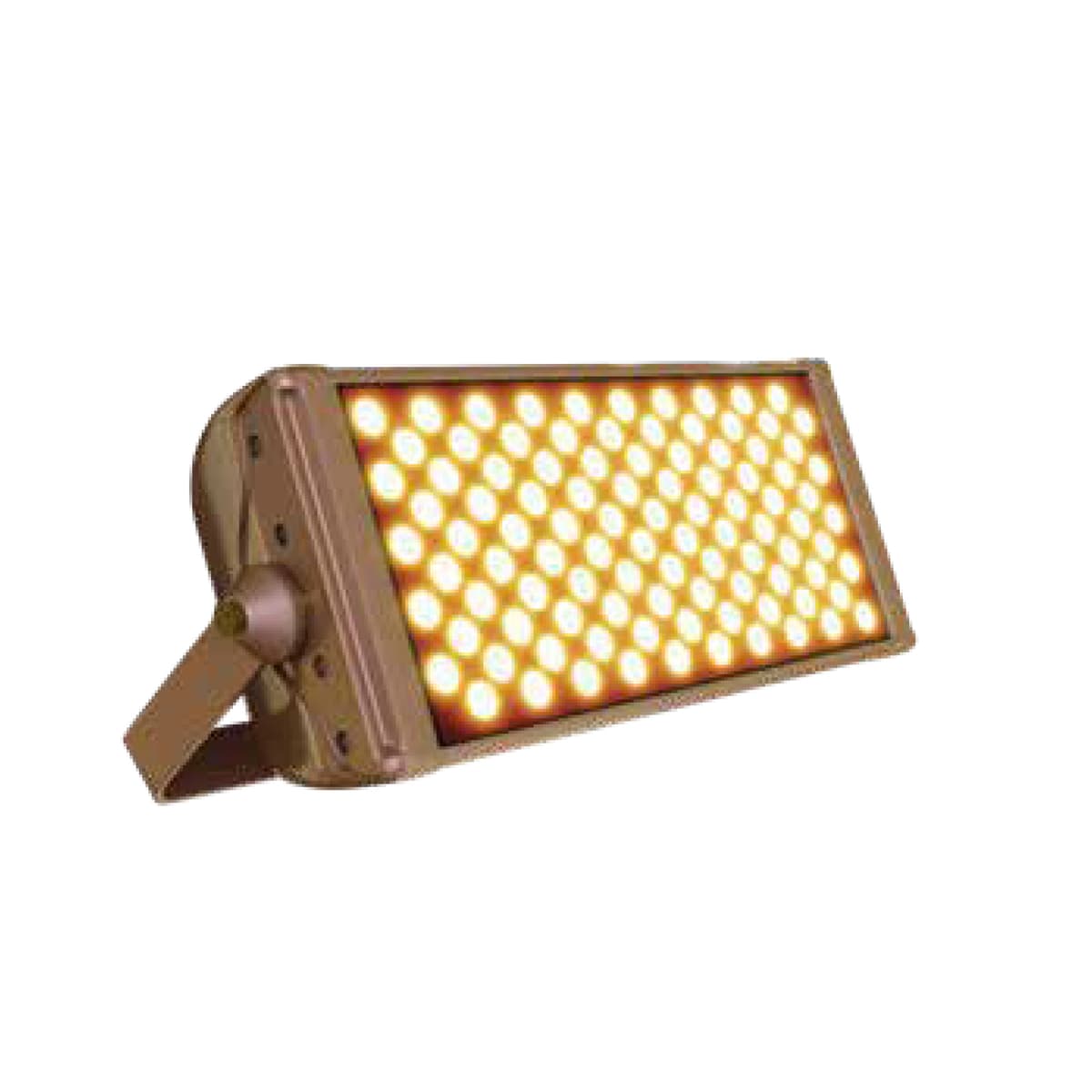

Performax F
Our pressure die-cast aluminium housing features an aesthetically pleasing design, with a dedicated heat sink for better thermal performance and corrosion resistance. The housing also includes a weatherproof gasket for added durability. Our LED Wash lights are perfect for highlighting building facades, adding an artistic touch with shadows, and utilizing up-lighting for pillars and columns. This helps to create a simple contrast or accentuate objects, making them the center of attention.
Applications
Heritage BuildingsGarden LightingFacade LightingParking Areas
Features
Wallwashing capabilities allow for uniform illumination of facades, enhancing the overall dimensions of the architecture.These lights are available in beam angles ranging from 15 to 45 degrees.Used to highlight outdoor facade, architectural wall are a outdoor.With single colour or RGBW options, they provide flexibility in lighting design.
Specifications
| Housing & Finish | Aluminium pressure die-cast |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 2.5kV |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 50000 |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Surface Mounting |
| Ingress protection & Impact resistance | IP66, IP66, IK07 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| On Request | LEDMFL050I5-01 | 50 | 3000K | >70 | 5000 | 1 | 4 |
| On Request | LEDMFL100I5-01 | 100 | 3000K | >70 | 10000 | 1 | 5.5 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
