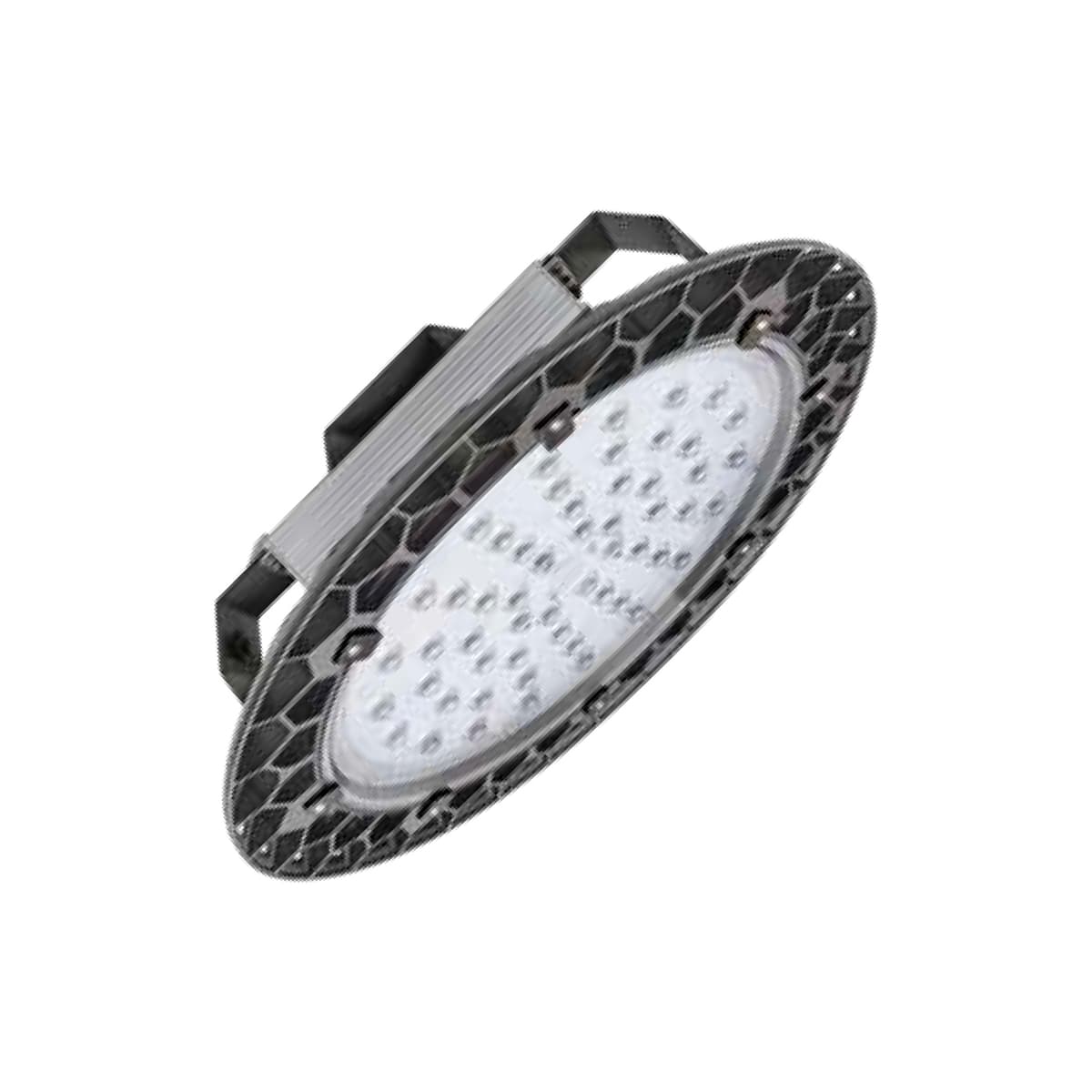

Perforbay III Executive WB
Industrial LED Highbay designed with clear toughened glass and high efficiency LEDs and natural fits for industrial uses. The product family comes in various wattages and go-to solution in many workplaces for achieving bright and uniform illumination across large spaces. Made up with pressure die-cast aluminium housing. The product also offers IP66 degree of protection as a standard. The product family comes with secondary optics of 90° wide beam angle suitable for low ceiling spaces.
Applications
Toll PlazasConcourseIndustrial ShedsWarehousesRailway PlatformsArtium
Features
Higher efficacy delivered with 120lm/W at luminaire level.Potted drivers across wattages for zero failures during instances of vibration.Non yellowing type secondary optics for better light distribution & control.Specially designed heat sink for better LED and luminaire life.Anti-vibration rubber & eye bolt-nut along with counter pin is given with cradle for easy and vibration-free installation.
Specifications
| Housing & Finish | Pressure die-cast aluminium housing with epoxy black powder coating |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 5kV inbuilt and 10kV external |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 50000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Suspended Mounting |
| Ingress protection & Impact resistance | IP66, IK07 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6H65PBDR080 | LEDHIBAY080I6R-03WB | 80 | 5700K | >70 | 8800 | 1 | 2.6 |
| 6H57PBDW080 | LEDHIBAY080I5R-03WB | 80 | 5700K | >70 | 8800 | 1 | 2.6 |
| 6H57PBDW100 | LEDHIBAY100I5R-03WB | 100 | 5700K | >70 | 11000 | 1 | 2.6 |
| 6H57PBDW120 | LEDHIBAY120I5R-03WB | 120 | 5700K | >70 | 13200 | 1 | 2.6 |
| 6H57PBDW150 | LEDHIBAY150I5R-03WB | 150 | 5700K | >70 | 16500 | 1 | 3.0 |
| On Request | LEDHIBAY200I5R-03WB | 200 | 5700K | >70 | 22000 | 1 | 3.1 |
