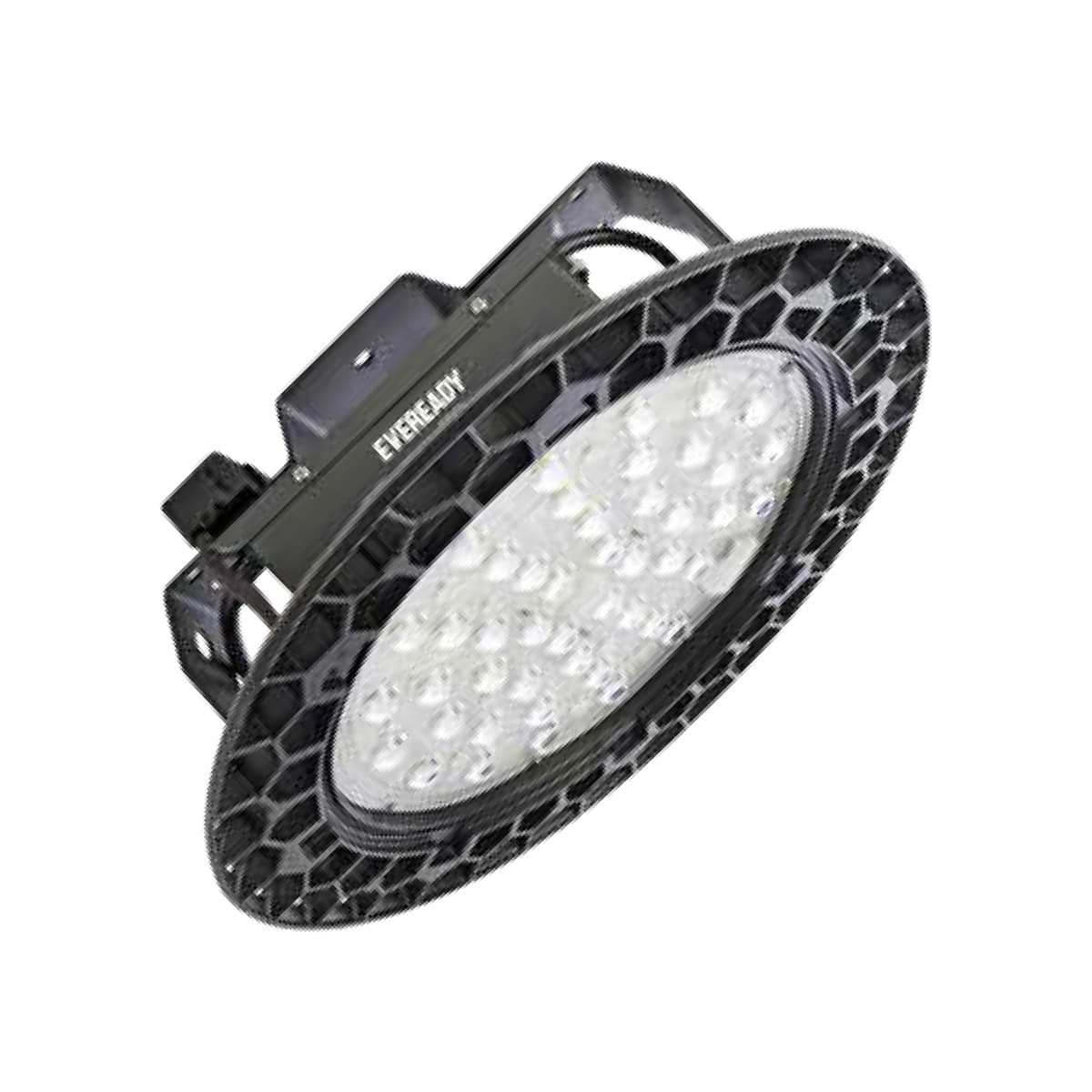

Perforbay II Ultra PC WB
Circular Industrial LED highbay designed with precise secondary optics and high-efficient LED delivering better value to industrial clients, the product family comes in multiple wattages and is highly durable and light in weight thanks to its revolutionary design made with pressure die-cast aluminium casting IP66. The product also offers IP66 & IK08 deg of protection as a standard. This product is also available in wide beam 90 deg version.
Applications
WarehousesRailway PlatformsAutriumToll PlazasConcourse
Features
Higher efficacy delivered with 150lm/W at luminaire level.5 step electrical protection for improved life & performance.Non yellowing type secondary optics for better light distribution & control.Specially designed heat sink for better LED and luminaire life.
Specifications
| Housing & Finish | Pressure die-cast aluminium housing with epoxy black powder coating |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 5kV inbuilt and 10kV external |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 50000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Suspended Mounting |
| Ingress protection & Impact resistance | IP66, IK08 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6H57PBIW080 | LEDHIBAY080I5R-PC HE WB | 80 | 5700K | >70 | 12000 | 1 | 2.3 |
| 6H57PBIW100 | LEDHIBAY100I5R-PC HE WB | 100 | 5700K | >70 | 15000 | 1 | 2.3 |
| On Request | LEDHIBAY120I5R-PC HE WB | 120 | 5700K | >70 | 18000 | 1 | 2.3 |
| On Request | LEDHIBAY150I5R-PC HE WB | 150 | 5700K | >70 | 22500 | 1 | 2.8 |
| On Request | LEDHIBAY200I5R-PC HE WB | 200 | 5700K | >70 | 30000 | 1 | 3.5 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
