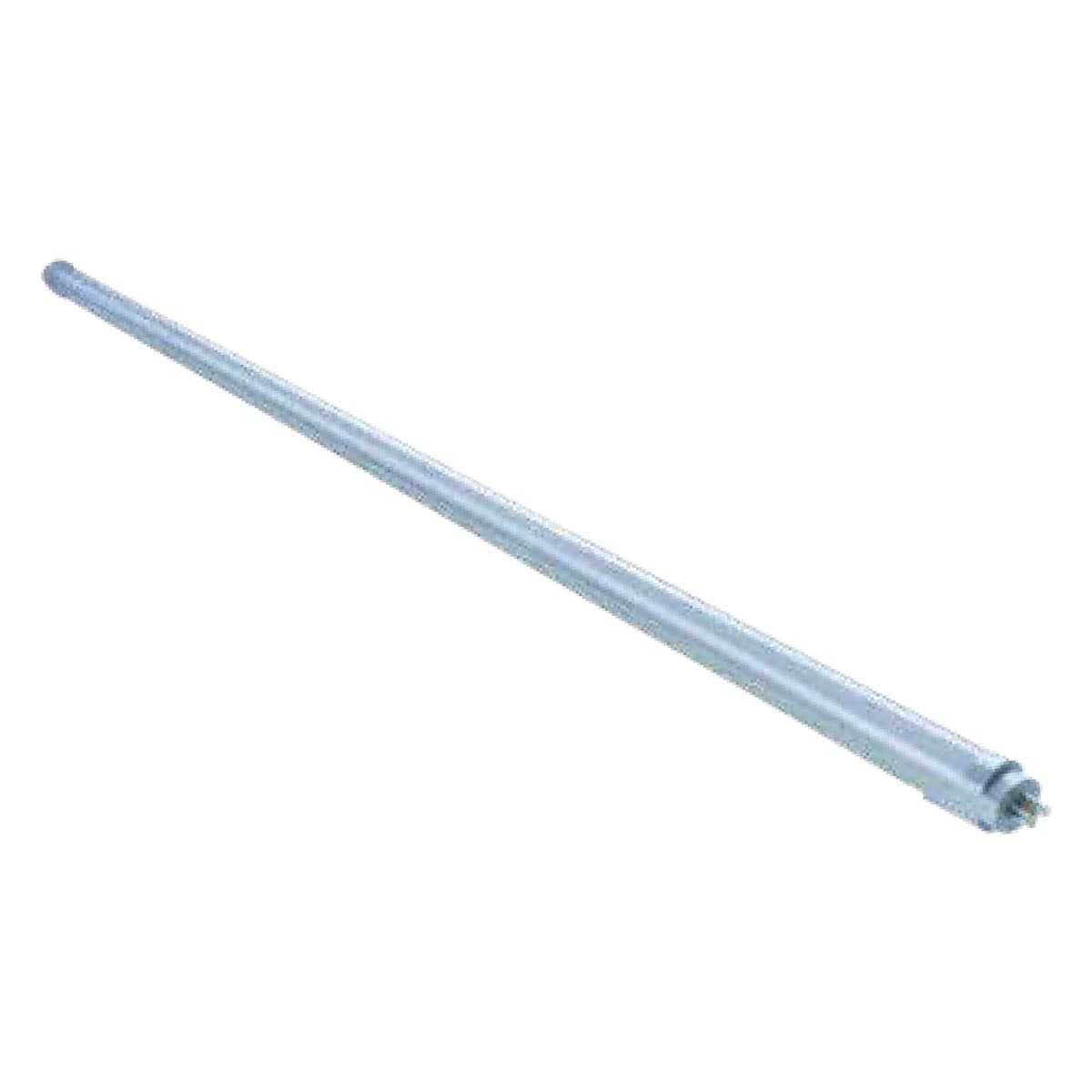

Orotip AL
This retrofit LED tube oblong in shape is made up with lightweight aluminium extruded housing and polycarbonate diffuser. Low power LED with series parallel array for uniform glare-free light.
Applications
HomesOfficesHotels and resturantResorts
Features
Aluminium housing for better thermal performance.More than 50% energy efficient as compared to conventional Tubelight.Elegant T8 design.Higher efficacy delivered with 110lm/W.
Specifications
| Housing & Finish | Aluminium Extrusion |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | < 15% |
| Surge Protection | Up to 2.5kV Inbuilt |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 160V - 280V AC |
| Average life span at L70B50 | 25000 Hours |
| Operating Temperature | 0 - 45 deg C |
| Mounting arrangement | Retrofit |
| Ingress protection & Impact resistance | IP20, IK03 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6T65PAD8020 | LEDAT02016 | 20 | 6500K | 7/80 | 2200 | 20 | 0.19 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
