Nulite Surface

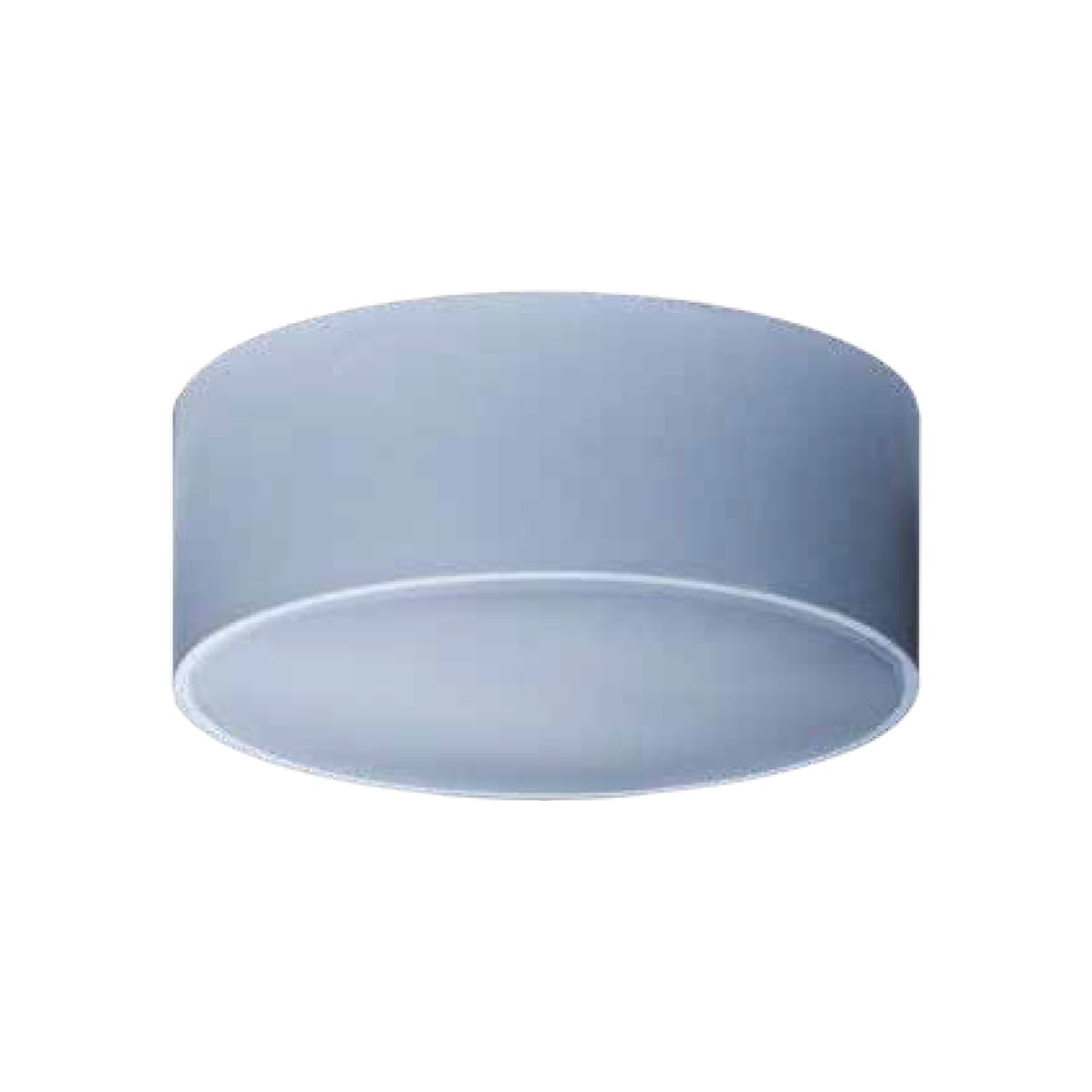

Nulite S are round shaped LED surface downlights which are designed to deliver not just high efficiency but also a superior quality of light. These LED downlights are made with pressure die-cast housing and clamp at back side provided for surface mounting. Polycarbonate diffuser is provided for spot-free and uniform lighting.

Applications

Open OfficesCommon Area PassagesShowroomsCafeteriaConference RoomsDiscussion Areas

Features

Superior colour rendering properties for increased efficiencies at work.Superior thermal management with die cast aluminium housing for improved LED & luminaire life.Designed with elegant finish along with spotless and uniform light distribution.

Specifications

Housing & Finish	Pressure die-cast Aluminium
Power Factor	≥ 0.95
Total Harmonic Distortion	≤ 10%
Surge Protection	Up to 2.5kV inbuilt
Input Voltage	240V 50Hz
Operating Voltage Range	140V - 280V AC
Average life span at L70B50	25000 Hours
Operating Temperature	-10℃ to +50℃
Mounting arrangement	Surface
Ingress protection & Impact resistance	IP20, IK03

Product Ordering Details

Ordering Code	Product Cat Ref	Input Power (W)	CCT	CRI	Luminous Flux (Lumens)	Case Lot	Weight
On Request	LEDDNRS006I4-01	6	4000K	>80	600	12	0.35
On Request	LEDDNRS006I6-01	6	6500K	>80	600	12	0.25
On Request	LEDDNRS009I4-01	9	4000K	>80	900	12	0.35
On Request	LEDDNRS012I4-01	12	4000K	>80	1200	12	0.35
On Request	LEDDNRS012I6-01	12	6500K	>80	1200	12	0.35
On Request	LEDDNRS015I4-01	15	4000K	>80	1500	12	0.35
On Request	LEDDNRS015I6-01	15	6500K	>80	1500	12	0.35
On Request	LEDDNRS018I4-01	18	4000K	>80	1800	12	0.6
On Request	LEDDNRS018I6-01	18	6500K	>80	1800	12	0.6
On Request	LEDDNRS022I4-01	22	4000K	>80	2200	12	0.6
On Request	LEDDNRS022I6-01	22	6500K	>80	2200	12	0.6
