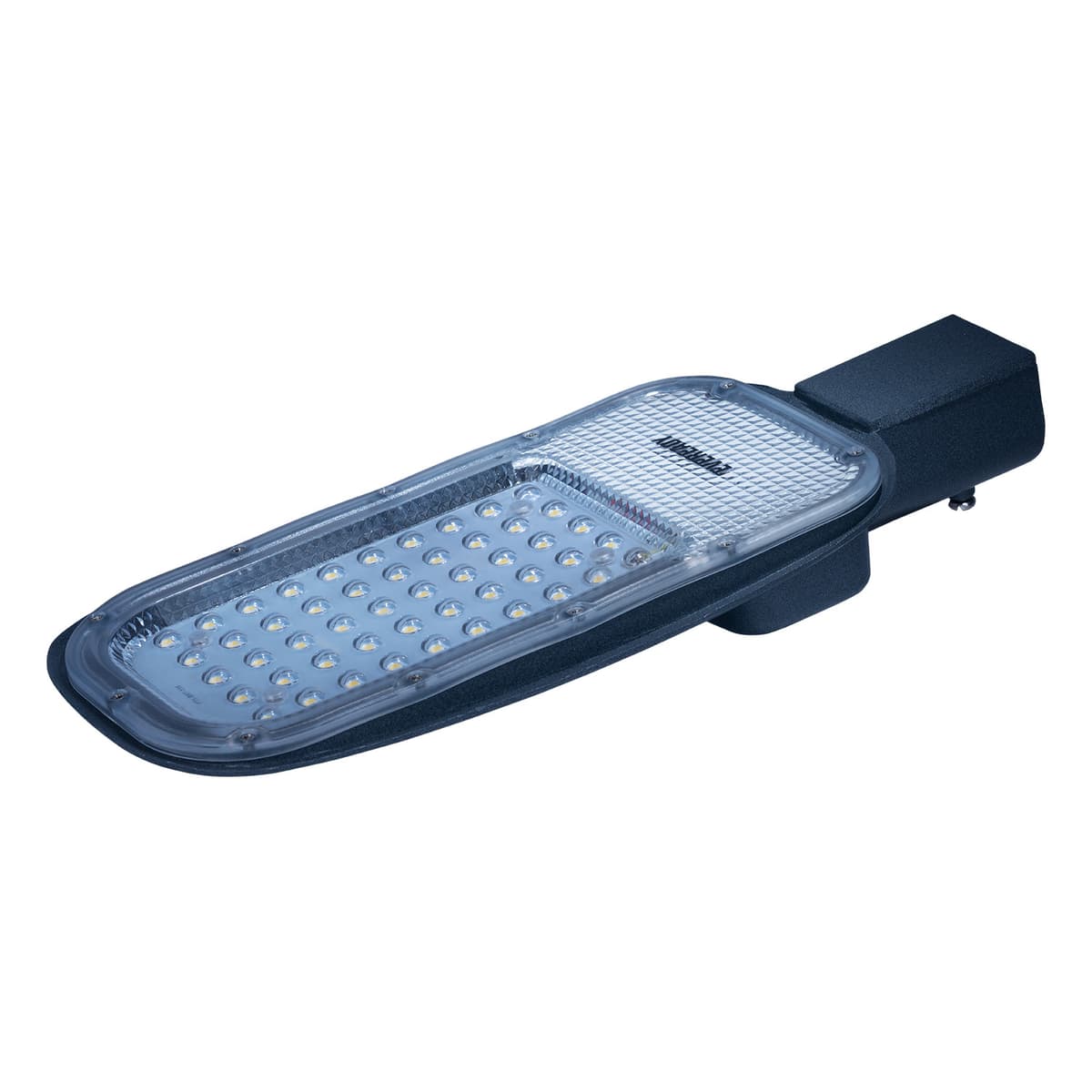

Minimight II - with Sensor
Street light with inbuilt daylight sensor which switches ON/OFF automatically in the absence/presence of sunlight. This IP66, IK08 streetlight comes in a pressure die-cast aluminium housing with epoxy grey powder coated finish for better aesthetics. Polycarbonate diffuser along with integrated lens fixed with silicon gasket for better ingress protection.
Applications
IT ParksParking AreasIndustrial UnitsSecondary Roads
Features
Inbuilt Light sensor turns product on/off in necessary situations.Energy efficient leading to savings in power consumption.Sleek, Compact and light weight design.Innovative heat sink design with modular lenses for efficient light distribution.High surge protection up to 6KV.
Specifications
| Housing & Finish | Pressure die-cast aluminium housing with epoxy grey powder coating finish |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | 6kV Inbuilt |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 25000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Pole Mounting |
| Ingress protection & Impact resistance | IP66, IK08 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| On Request | LEDSLSE030I5-PC | 30 | 5700K | >70 | 3600 | 12 | 0.60 |
| 6R57PBHS036 | LEDSLSE036I5-PC | 36 | 5700K | >70 | 4320 | 12 | 0.60 |
| 6R57PBDS045 | LEDSLSE045I5-PC | 45 | 5700K | >70 | 5400 | 12 | 0.75 |
| 6R57PBDS060 | LEDSLSE060I5-PC | 60 | 5700K | >70 | 6600 | 1 | 1.16 |
| On Request | LEDSLSE072I5-PC | 72 | 5700K | >70 | 7700 | 1 | 1.16 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
