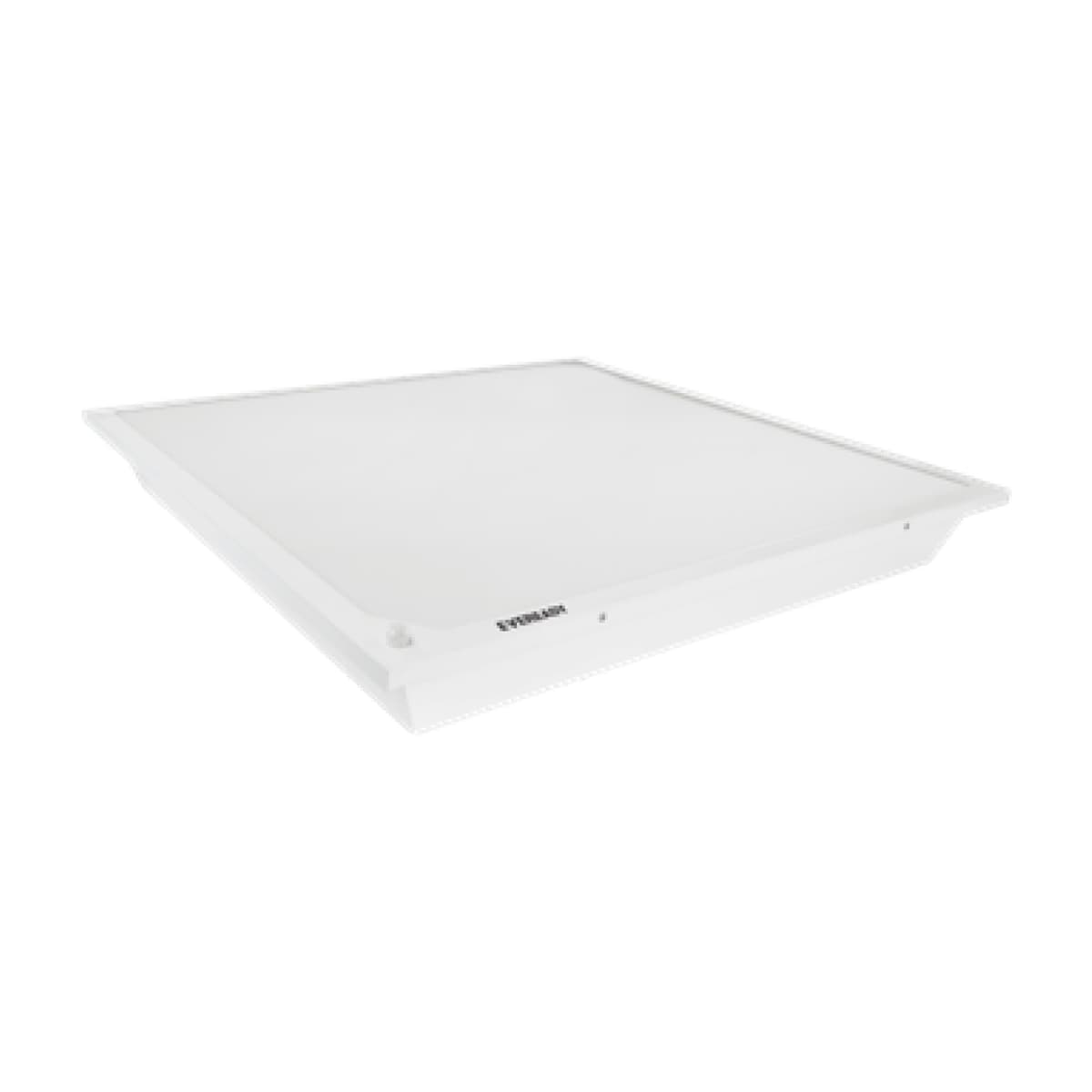

Masterlite Tunning and Dimming
Recess mounted LED tunable and dimmable luminaires offering seamless colour changes from warm white to neutral white to cool white and also changes brightness in order to match the circadian rhythm of the human brain to improve efficiency of the employees.
Applications
Educational institutesIT/ITES/BPOHospitalsBanks and Atm'sOpen Plan officesoffices/Conference Rooms
Features
Lighting fixture matching the circadian rhythm of human beings which regulates the biological process of human behaviour.The fixture comes with 0-10 analog dimming which can be managed through a hand held remote.Tunable light fixture with colour change options from Warm white to cool white.
Specifications
| Housing & Finish | CRCA housing with white power coating |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 2.5kV |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 36000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Recess mounting |
| Ingress Protection & Impact Resistance | IP20, IK03 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6P2ATD8RB36 | LEDPLB036I6-04 TD | 36 | 3000K - 6500K | >80 | 3600 | 2 | 3.75 |
| 6PR24G8RF36 (Remote code) | LEDPLR24GRF-04 TD | NA | NA | NA | NA | 1 | 0.1 |
