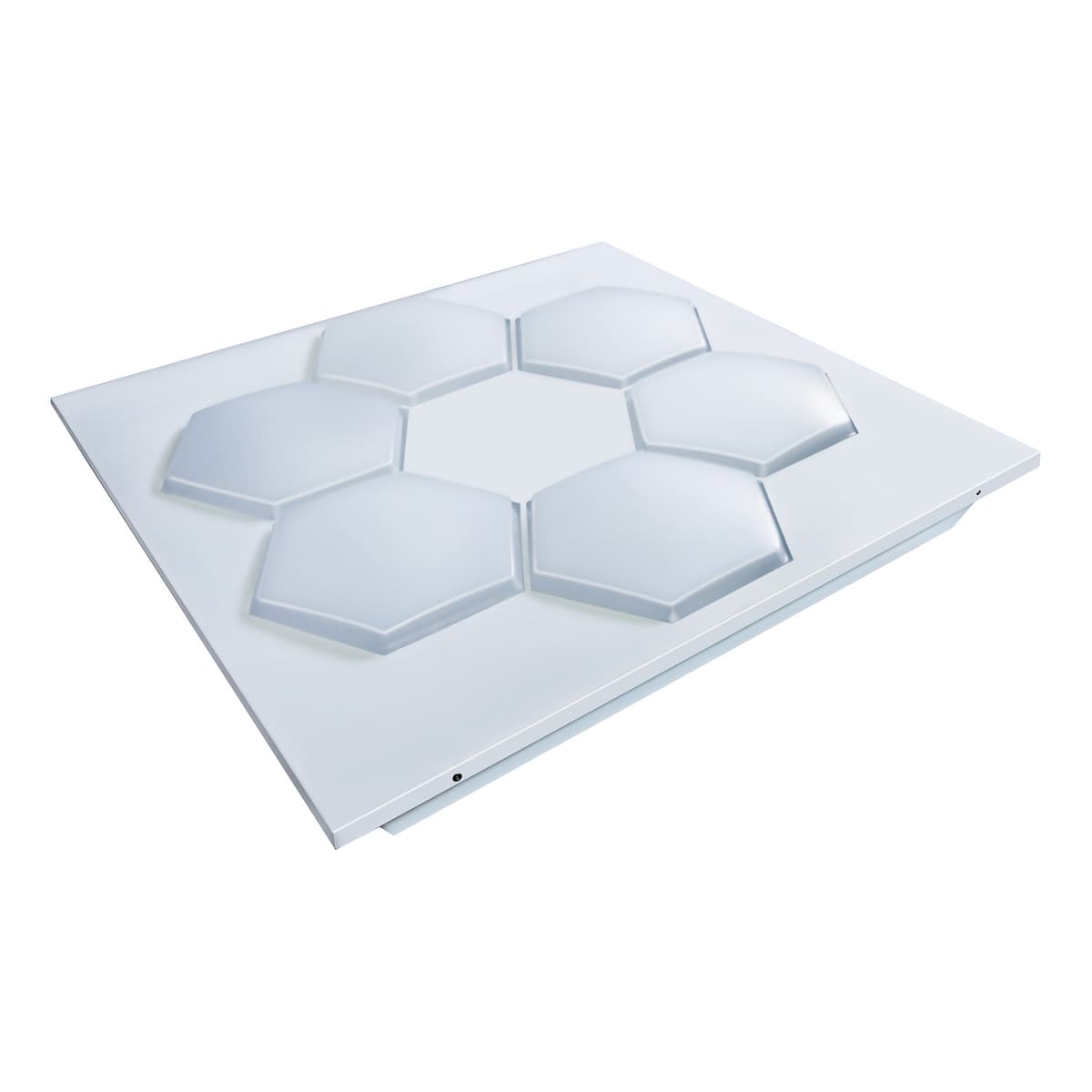

Masterlite HX
CRCA powder coated housing with inbuilt control gear for easy maintenance. Deep drawn PMMA diffuser fixed with CRCA powder coated 6 cut hexagon frame provides decorative lighting solution for offices and modern workspace areas.
Applications
Open Plan officesoffices/Conference RoomsEducational InstitutesIT/ITES/BPOHospitalsBanks and Atms's
Features
Decorative Deep drawn Opal diffuser with CRCA powder coated 6 cut hexagon frame.High colour rendering index (CRI > 80).High transmittance PMMA for spot free lighting.Sturdy product design with CRCA housing with powder coating to ensure extended lifetime.
Specifications
| Housing & Finish | CRCA housing with white power coating |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 4kV |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 25000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Surface mounting |
| Ingress protection & Impact resistance | IP20, IK03 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6P2A658AH36 | LEDPLB036I6-04HX | 36 | 6500K | >80 | 3600 | 2 | 2.5 |
