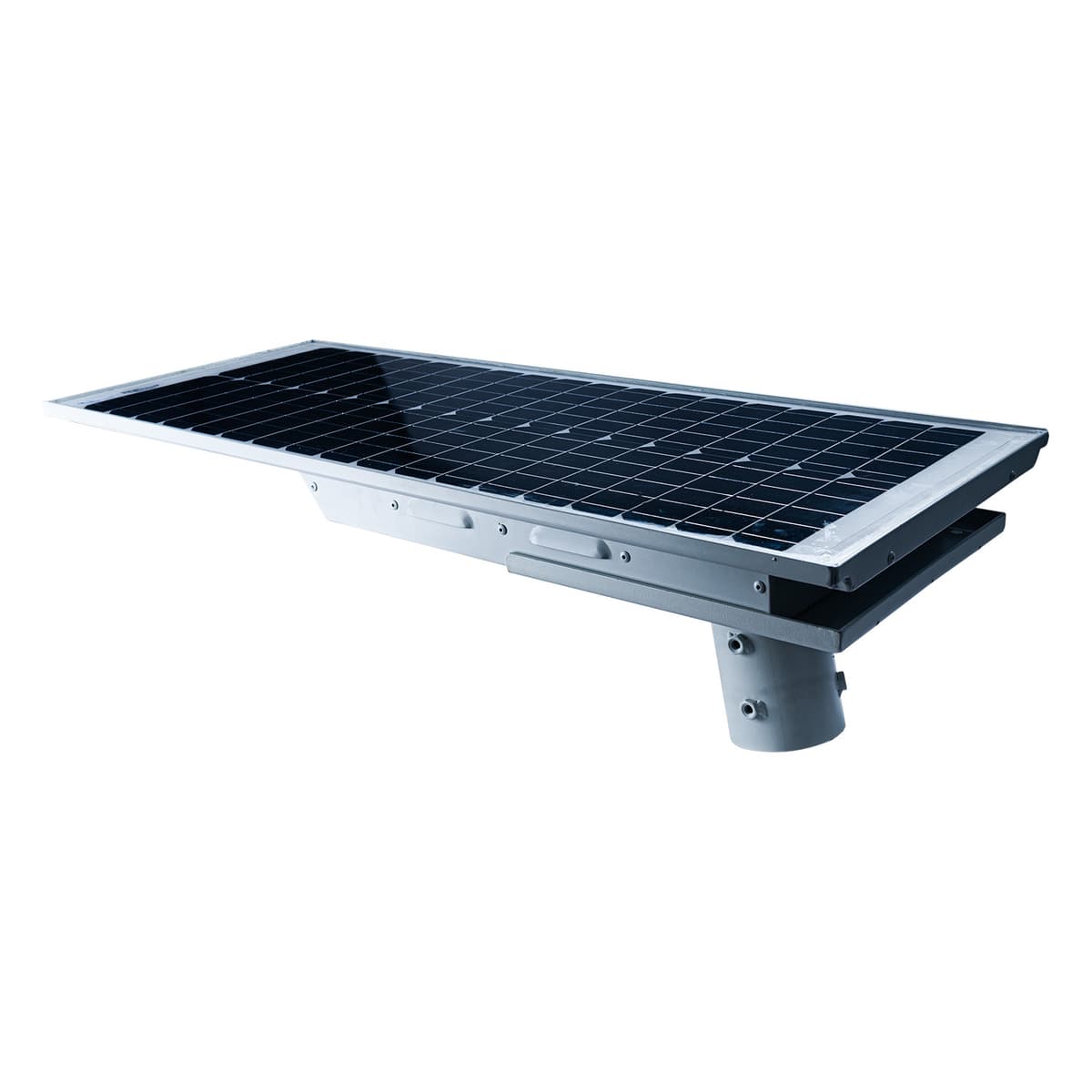

Integrated Solar Street Light
New generation Integrated solar street lights with integrated solar panel, Lithium-ion phosphate battery & high efficiency, high power LEDs with secondary optics offering precise distribution and control. The Aluminium body acts as an excellent heat sink for better luminaire and LED life, Optional PIR motion detectors adds to extended battery life during non-peak hours of operation. The product comes with IP66 deg of protection and is supplied with attachments which can fit into existing poles offering greater flexibility for installation.
Applications
City RoadsParking AreasPrimary RoadsIndustrial Units
Features
Integrated product without any hassles of battery theft & maintenance.PIR sensor for movement detection and light control.Best-in-class Lumen efficacy with 150 lm/watt.Battery backup of more than 24 hours.
Specifications
| Housing & Finish | Aluminium housing with Light grey finish |
| Power Factor | NA |
| Total Harmonic Distortion | NA |
| Surge Protection | NA |
| Input Voltage | NA |
| Operating Voltage Range | NA |
| Average life span at L70B50 | 50000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Pole Mounting |
| Ingress protection & Impact resistance | IP66, IK08 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6S60PAAA012 | LEDSS012I6-01 | 12 | 5700K | >70 | 1800 | 1 | 9.5 |
| 6S57PAEI016 | LEDSS016I5-01 | 16 | 5700K | >70 | 2400 | 1 | 11 |
| On Request | LEDSS020I5-01 | 20 | 5700K | >70 | 3000 | 1 | 13 |
| On Request | LEDSS025I5-01 | 25 | 5700K | >70 | 3750 | 1 | 13 |
| On Request | LEDSS030I5-01 | 30 | 5700K | >70 | 4500 | 1 | 13 |
| 6S57PAHF035 | LEDSS035I5-01 | 35 | 5700K | >70 | 5250 | 1 | 18 |
| 6S57PBEJ040 | LEDSS040I5-01 | 40 | 5700K | >70 | 6000 | 1 | 18 |
| On Request | LEDSS050I5-01 | 50 | 5700K | >70 | 7500 | 1 | 21 |
| 6S60PAAH060 | LEDSS060I6-01 | 60 | 5700K | >70 | 9000 | 1 | 21 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
