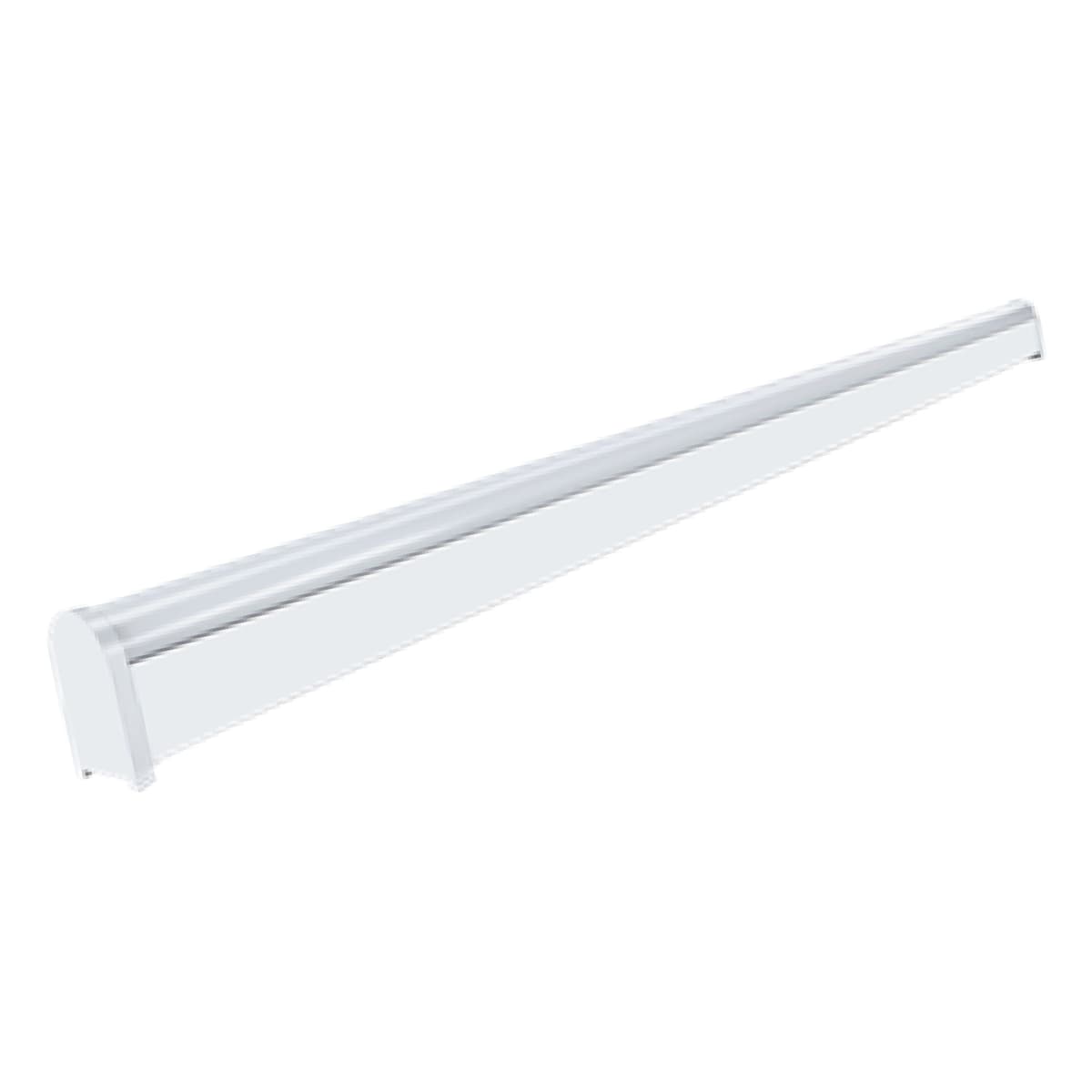

Horizalite Ultra
Innovative LED Batten solution for replacement of conventional twin lamp battens, LED weather & corrosion proof luminaire made with white powder coated CRCA Housing and extruded opal polycarbonate diffuser with ingress protection IP20 & impact resistance of IK-05.
Applications
Electrical RoomsIndustrial Assembly linesStorage and warehouseparking lotsRailway platformsCorridors
Features
High efficacy luminaire delivering 100lm/W.Robust design with CRCA housing.Easy installation on to suitable surfaces.UV stablised opal PC diffuser for soothing spotless lighting.CRCA body with snap fit screw less arrangement.
Specifications
| Housing & Finish | CRCA housing with White finish |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 4kV Inbuilt |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 50000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Surface |
| Ingress protection & Impact resistance | IP20, IP66, IK05 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6B65PCM8040 | LEDBTCR040I6-02 | 40 | 6500K | >80 | 4000 | 4 | 1.2 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
