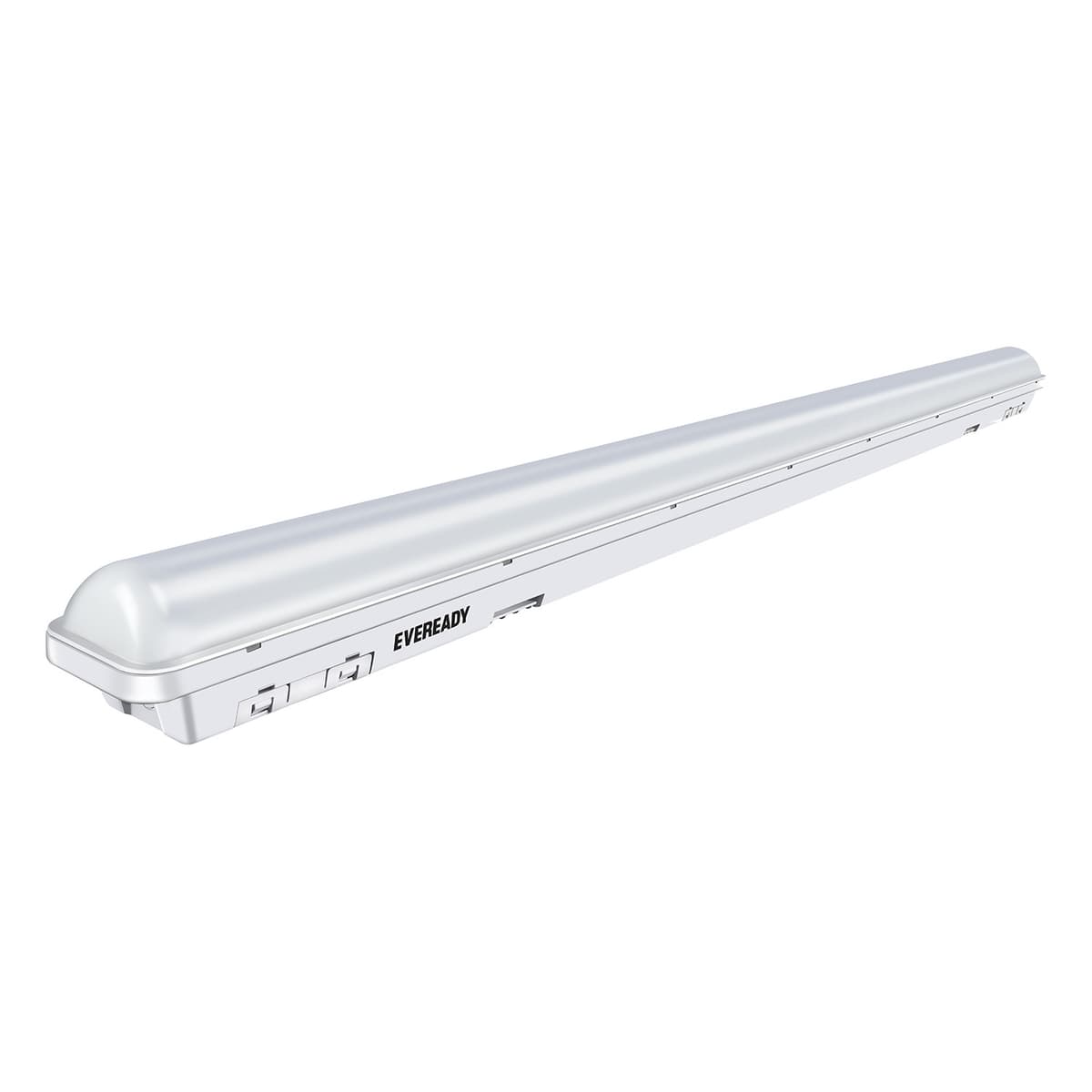

Horizalite PC Ultra
LED weather & corrosion proof luminaire made with injection moulded polycarbonate material and UV stabilised opal polycarbonate diffuser with ingress protection IP65 & impact resistance of IK-08. Loop in Loop out facility for larger installation.
Applications
Electrical RoomsIndustrial Assembly linesParking LotsCorridorsStorage and warehouseRailway Platforms
Features
High efficacy luminaire delivering 120lm/W.Loop in Loop out facility for large installations.Easy installation on to suitable surfaces.UV stabilised opal PC diffuser for soothing spotless lighting.Injection moulded polycarbonate with snap fit screw less arrangement.
Specifications
| Housing & Finish | Polycarbonate Grey finish |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 4kV inbuilt |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 50000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Surface / Wall Mounted |
| Ingress protection & Impact resistance | IP65, IP66, IK08 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6BP65A88M40 | LEDPC040I6-02 | 40 | 6500K | >80 | 4800 | 8 | 1 |
| 6BP30A88M40 | LEDPC020I6-02 4ft | 40 | 3000K | >80 | 4800 | 8 | 1 |
| 6BPF65A8820 | LEDDNC012I3-01 | 20 | 6500K | >80 | 2400 | 8 | 1 |
| 6BP65A88M20 | LEDPC020I6-02 | 20 (2ft) | 6500K | >80 | 2400 | 8 | 0.61 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
