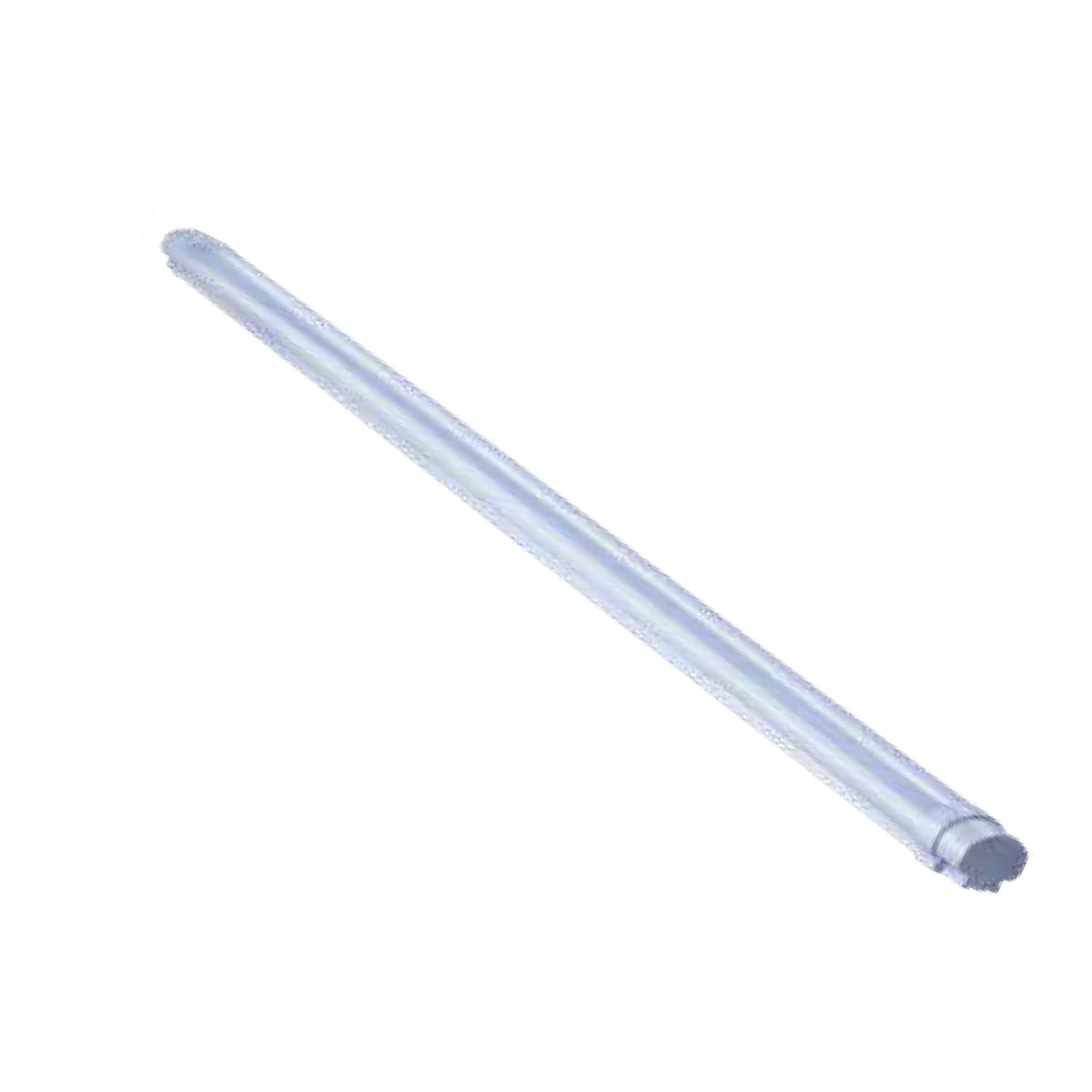

Horizalite PC Executive
LED weather & corrosion proof luminaire made with injection moulded polycarbonate material and UV stabilised opal polycarbonate diffuser with ingress protection IP65 & impact resistance of IK-08. Loop in Loop out facility for larger installation.
Applications
Railway PlatformsElectrical RoomsCorridorsIndustrial Assembly LinesStorage and warehouseParking Lots
Features
High efficacy luminaire delivering 120lm/W.Loop in Loop out facility for large installations.Easy installation on to suitable surfaces.UV stablised opal PC diffuser for soothing spotless lighting.Injection moulded polycarbonate with snap fit screw less arrangement.
Specifications
| Housing & Finish | Polycarbonate Grey finish |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 15% |
| Surge Protection | Up to 6kV Inbuilt |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 25000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Surface / Wall Mounted |
| Ingress protection & Impact resistance | IP65, IP66, IK08 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6B65PPM8040 | LEDPC040I6-01 | 40 | 6500K | >80 | 4800 | 10 | 0.76 |
| On Request | LEDPC020I6-01 | 20 | 6500K | >80 | 2400 | 10 | 0.45 |
