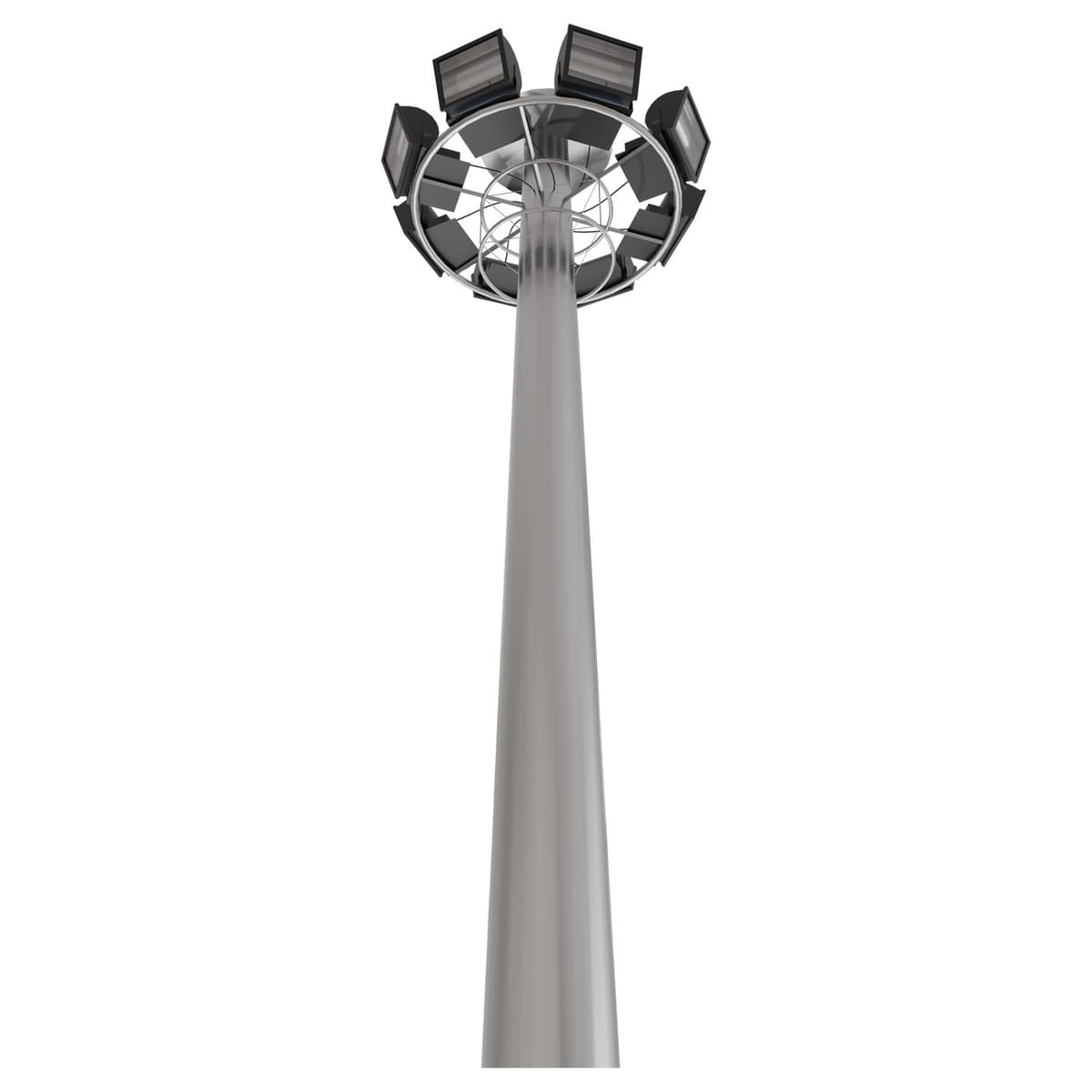

High Mast
High Mast lighting is a type of site light fixture that is commonly used to illuminate large areas from a very high mounting height for storage, transportation, and pedestrian use and safety.
Applications
JunctionsSports LightingShipyardsHighwaysParking Lots
Features
High Mast renders uniform illumination to the entire area.High Mast is mounted at considerable heights very important for area & junction lightings.It provides high degree of safety illumination to complex junctions, storage & pedestrians.Mast provides various lighting solutions using different luminaire combinations.
Specifications
| Product Specifications 1 | The High Mast is polygonal in shape continuously tapered sections having dimensions and thickness as required in the design made from high tensile steel conforming to BSEN grade. |
| Product Specifications 2 | The mast section should be fabricated for metal protection through hot dip galvanization and thickness of galvanization should not be less than 86 microns. |
| Product Specifications 3 | The mast is designed with components including Head Frame & Pulley Assembly, Bracket, Lantern Carriage Ring for Luminaries and C.G Box Mtg. Arms, Resting Bracket Guide Ring. |
| Product Specifications 4 | Typical mast is of 12.5mts, 16mts, 20mts, 25mts & 30mts & special masts available on request. |
