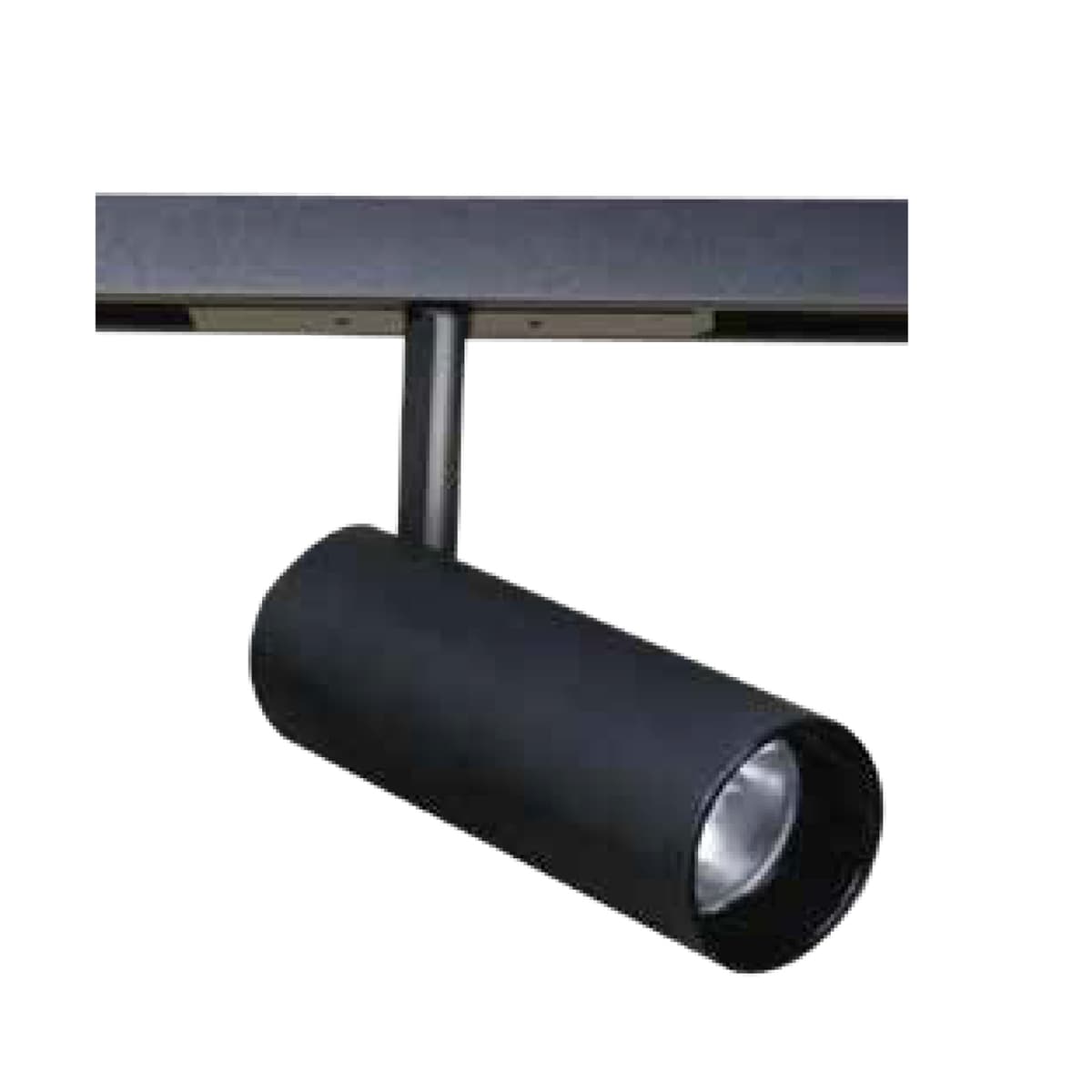

Glitz TR
Functional and stylish track light from Eveready serves as both light source and art piece for your workplace. They allow you to design your own layout, creating a maze of straight lines, boxes, or curving or playful rails on the ceiling. The track light mounts on a support track in order to power the fixture and can be easily installed with simple screws and connected to existing electrical circuits, usually in the ceiling.
Applications
CafeteriaConference RoomsMuseumsOpen Offices
Features
Available in black and white finish aluminium body.COB with reflector of 38 deg spread.Aluminium body for efficient thermal management and long LED life.Suitable to focus lights on a specific spot.
Specifications
| Housing & Finish | Aluminium Extrusion |
| Power Factor | ≥ 0.9 |
| Total Harmonic Distortion | ≤ 15% |
| Surge Protection | Up to 2.5kV |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 20000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Surface |
| Ingress protection & Impact resistance | IP20, IK03 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6TR308CAW15 | LEDTRL015I3-W | 15 | 3000K | >85 | 1350 | 10 | 0.2 |
| 6TR408CAW15 | LEDTRL015I4-W | 15 | 4000K | >85 | 1500 | 10 | 0.2 |
| 6TR308CAB15 | LEDTRL015I3-B | 15 | 3000K | >85 | 1350 | 10 | 0.2 |
| 6TR408CAB15 | LEDTRL015I4-B | 15 | 4000K | >85 | 1500 | 10 | 0.2 |
| 6TR308CAW20 | LEDTRL020I3-W | 20 | 3000K | >85 | 1800 | 20 | 0.3 |
| 6TR408CAW20 | LEDTRL020I4-W | 20 | 4000K | >85 | 2000 | 20 | 0.3 |
| 6TR308CAB20 | LEDTRL020I3-B | 20 | 3000K | >85 | 1800 | 20 | 0.3 |
| 6TR408CAB20 | LEDTRL020I4-B | 20 | 4000K | >85 | 2000 | 20 | 0.3 |
| 6TR308CAW30 | LEDTRL030I3-W | 30 | 3000K | >85 | 2700 | 10 | 0.5 |
| 6TR308CAW30 | LEDTRL030I4-W | 30 | 4000K | >85 | 3000 | 10 | 0.5 |
| 6TR308CAB30 | LEDTRL030I3-B | 30 | 3000K | >85 | 2700 | 10 | 0.5 |
| 6TR408CAB30 | LEDTRL030I4-B | 30 | 4000K | >85 | 3000 | 10 | 0.5 |
| 6TR308CAW40 | LEDTRL040I3-W | 40 | 3000K | >85 | 3600 | 10 | 0.5 |
| 6TR408CAW40 | LEDTRL040I4-W | 40 | 4000K | >85 | 4000 | 10 | 0.5 |
| 6TR308CAB40 | LEDTRL040I3-B | 40 | 3000K | >85 | 3600 | 10 | 0.5 |
| 6TR408CAB40 | LEDTRL040I4-B | 40 | 4000K | >85 | 4000 | 10 | 0.5 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
