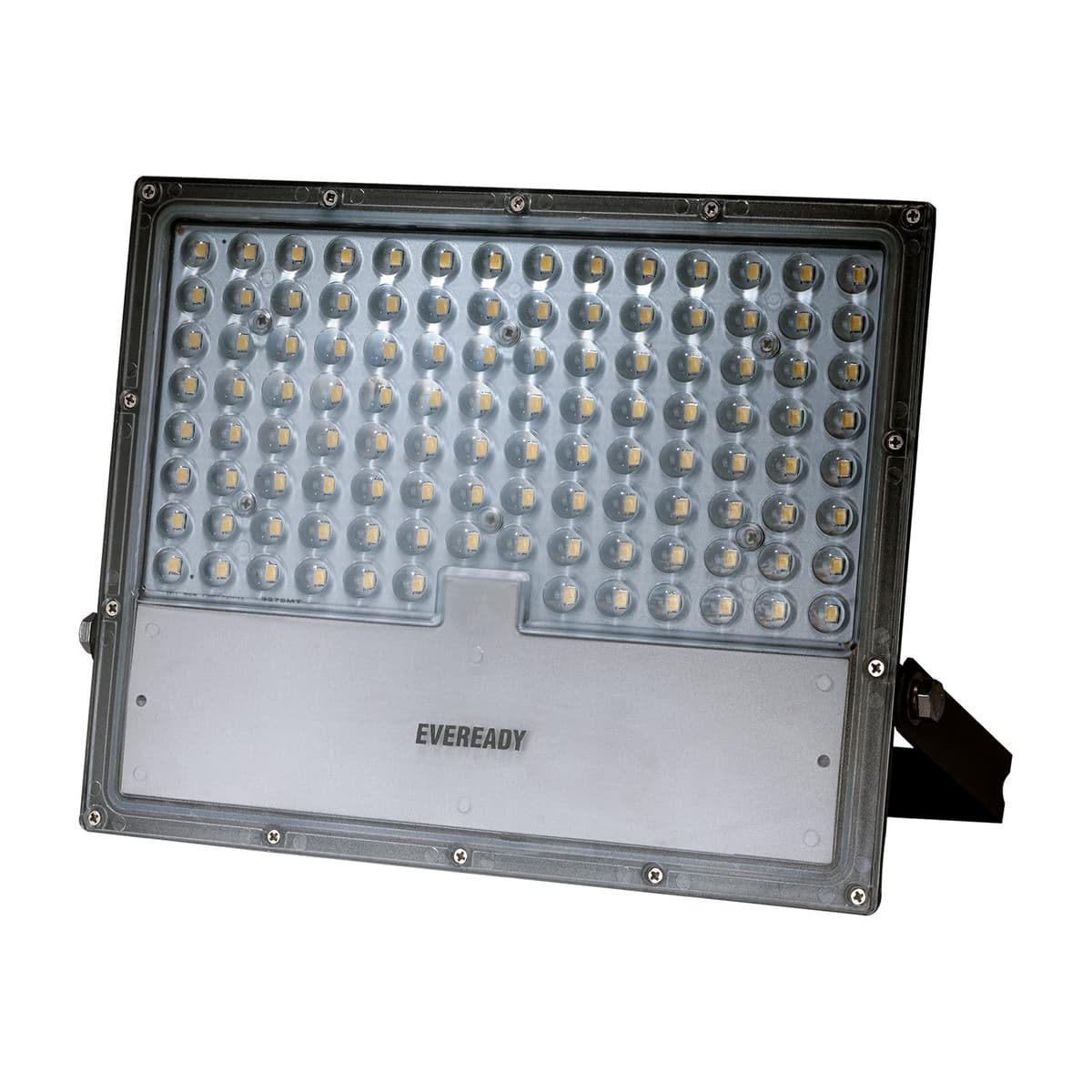

Explorer PC
LED flood lights for area lighting applications are made with a single piece of pressure die-cast aluminium housing along with dedicated heat sink and poly carbonate diffuser cum lens. Standard IP66 degree of protection and impact resistance of IK-08, integrated driver with 5kV internal surge protection.
Applications
JunctionsAirport ApronsMaterial Handling YardsRailway Yards
Features
Higher efficacy with 100lm/W delivered.Single piece of pressure die-cast aluminium housing for better heat dissipation.High surge protection for better luminaire life.Flood light with optimum luminance and brightness.
Specifications
| Housing & Finish | Pressure die-cast aluminium housing with epoxy black powder coating finish |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 5kV Inbuilt |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 25000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Cradle mounting |
| Ingress protection & Impact resistance | IP66, IK08 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6F57PBA8050 | LEDFL050I5-04 PC | 50 | 5700K | >80 | 5000 | 6 | 0.77 |
| 6F57PBA8080 | LEDFL080I5-04 PC | 80 | 5700K | >80 | 8000 | 4 | 1.265 |
| 6F57PBA8100 | LEDFL100I5-04 PC | 100 | 5700K | >80 | 10000 | 4 | 1.265 |
| 6F57PBA8150 | LEDFL150I5-04 PC | 150 | 5700K | >80 | 15000 | 2 | 1.875 |
| 6F57PBA8200 | LEDFL200I5-04 PC | 200 | 5700K | >80 | 20000 | 2 | 2.72 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
