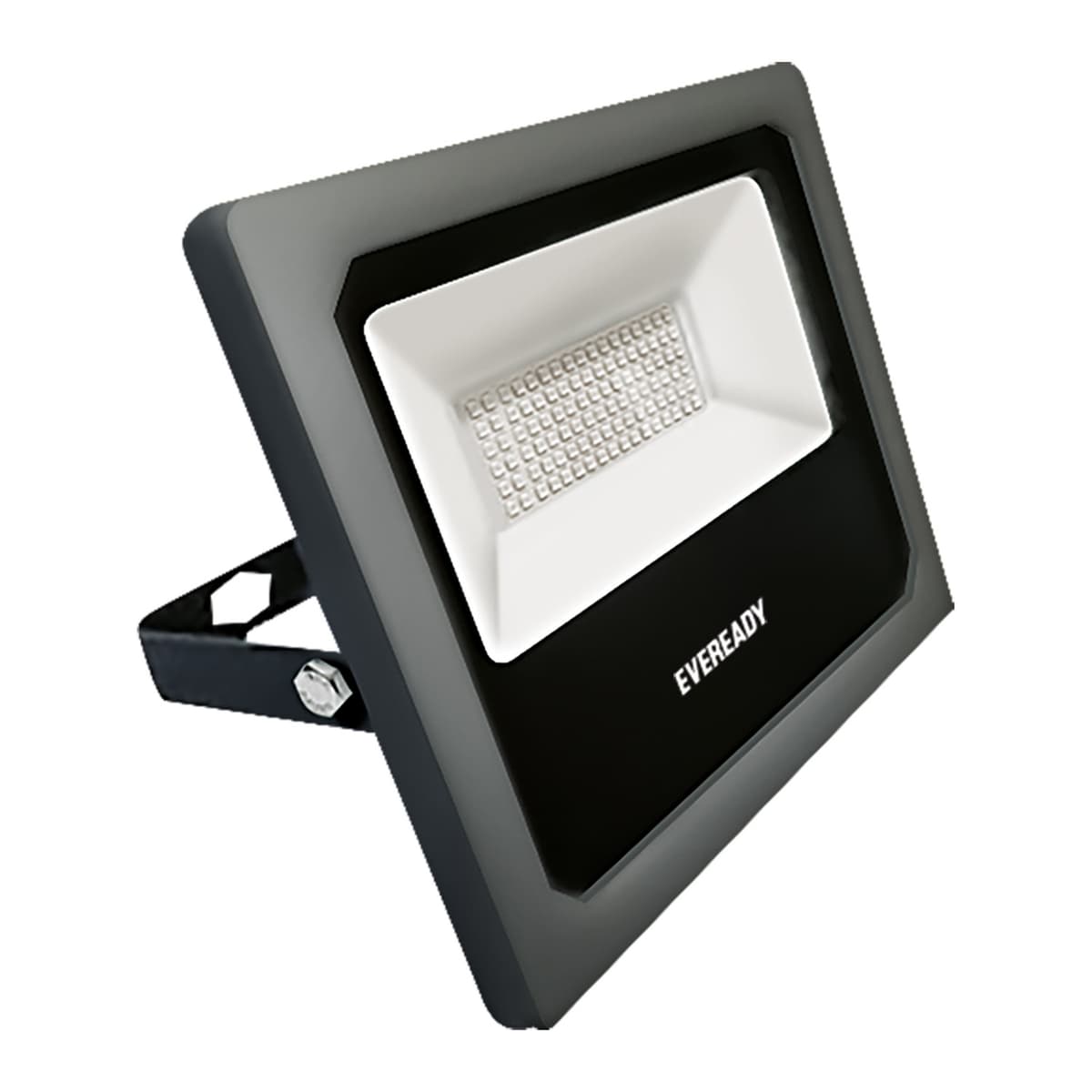

Explorer N
LED flood lights for area lighting applications are made with a single piece of pressure die-cast aluminium housing along with dedicated heat sink and toughened glass. Standard IP66 degree of protection and impact resistance of IK-07, integrated driver with 5kV internal surge protection.
Applications
JunctionsAirport ApronsMaterial Handling YardsSports LightingRailway Yards
Features
Compact and light weight flood light design.Single piece pressure die-cast aluminium housing for better heat dissipation.Class leading inbuilt surge protection for better luminaire life.
Specifications
| Housing & Finish | Pressure die-cast aluminium housing with epoxy grey powder coating finish |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 5kV inbuilt |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 36000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Cradle mounting |
| Ingress protection & Impact resistance | IP66, IK07 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| On Request | LEDFL010I5-04 | 10 | 5700K | >80 | 1000 | 10 | 0.42 |
| On Request | LEDFL020I5-04 | 20 | 5700K | >80 | 2000 | 10 | 0.43 |
| 6F57PBAE030 | LEDFL030I5-04 | 30 | 5700K | >80 | 3000 | 10 | 0.77 |
| 6F57PBAE050 | LEDFL050I5-04 | 50 | 5700K | >80 | 5500 | 5 | 1.04 |
| 6F57PBA8060 | LEDFL060I5-04 | 60 | 5700K | >80 | 6000 | 5 | 1.04 |
| 6F57PBAE080 | LEDFL080I5-04 | 80 | 5700K | >80 | 8000 | 4 | 1.86 |
| 6F57PBAE100 | LEDFL100I5-04 | 100 | 5700K | >80 | 10000 | 4 | 1.86 |
| 6F30PBAE100 | LEDFL100I3-04 | 100 | 5700K | >80 | 10000 | 4 | 1.86 |
| 6F57PBAE120 | LEDFL120I5-04 | 120 | 5700K | >80 | 12000 | 2 | 2.29 |
| 6F57PBAE150 | LEDFL150I5-04 | 150 | 5700K | >80 | 15000 | 1 | 3.76 |
| 6F57PBAE200 | LEDFL200I5-04 | 200 | 5700K | >80 | 20000 | 1 | 3.76 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
