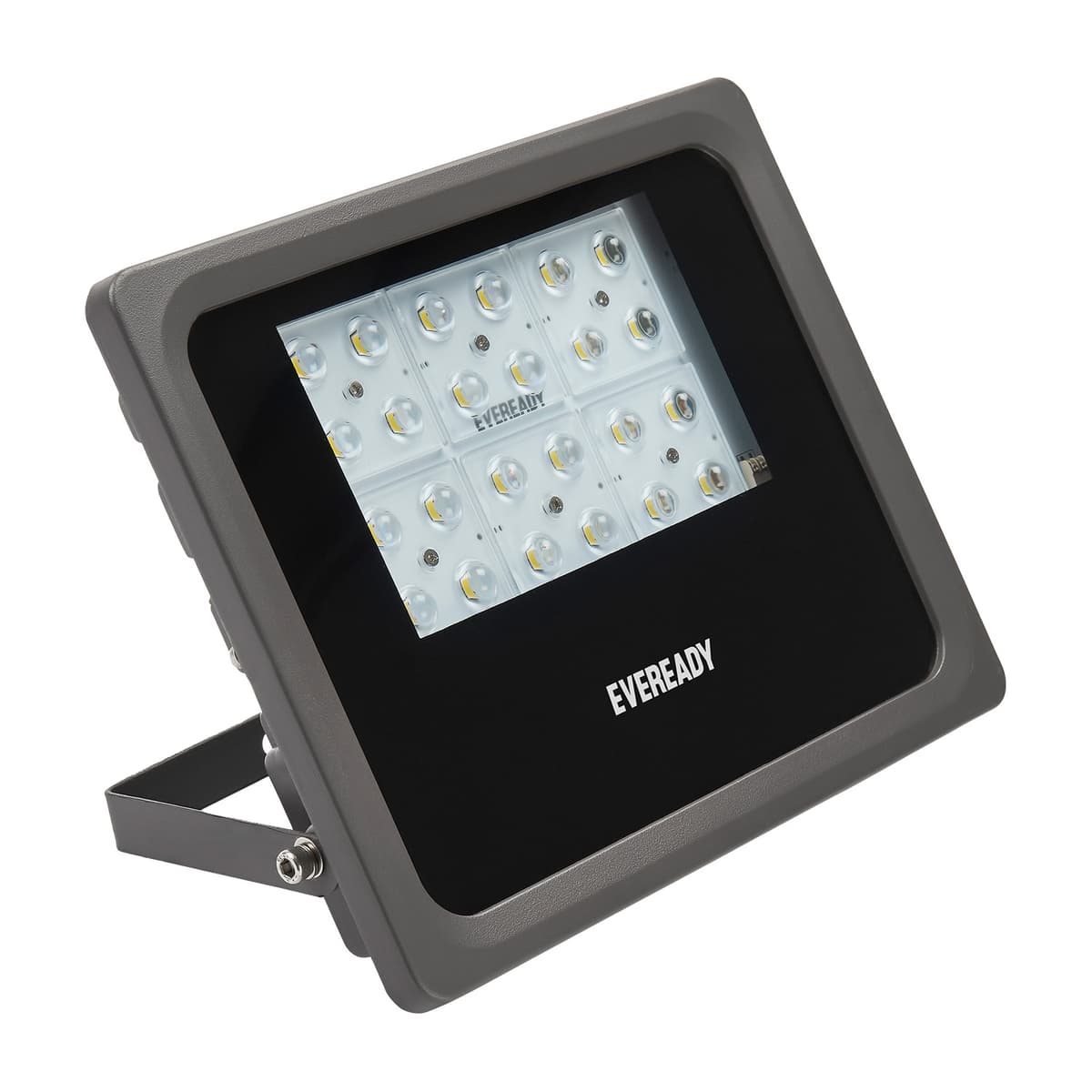

Explorer L
LED flood lights for area lighting applications are made with a single piece of pressure die-cast aluminium housing along with dedicated heat sink and toughened glass. LEDs with secondary optics and with better light distribution and control, IP66 degree of protection and impact resistance of IK-07, integrated driver with 5kV internal and 10kV external surge protection.
Applications
JunctionsAirport ApronsMaterial Handling YardsArea Lighting-MastsSports LightingRailway Yards
Features
Single piece of pressure die-cast aluminium housing for better heat dissipation.Secondary optics for better control over distribution.High surge protection for better luminaire life.Access for 320 deg. rotation with mounting cradle for best possible light distribution.
Specifications
| Housing & Finish | Pressure die-cast aluminium housing with epoxy grey powder coating finish |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 5kV inbuilt and 10kV external |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 50000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Bracket mounting with cradle |
| Ingress protection & Impact resistance | IP66, IK07 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6F57PBDL080 | LEDFL080I5-04L | 80 | 5700K | >70 | 8800 | 2 | 2.3 |
| 6F57PBDL100 | LEDFL100I5-04L | 100 | 5700K | >70 | 11000 | 2 | 2.35 |
| 6F57PBDL120 | LEDFL120I5-04L | 120 | 5700K | >70 | 13200 | 2 | 2.4 |
| 6F57PBDL150 | LEDFL150I5-04L | 150 | 5700K | >70 | 16500 | 1 | 3.9 |
| On Request | LEDFL180I5-04L | 180 | 5700K | >70 | 19800 | 1 | 3.9 |
| 6F57PBDL200 | LEDFL200I5-04L | 200 | 5700K | >70 | 22000 | 1 | 4.0 |
| 6F57PBAL050 | LEDFL050I5-04L | 50 | 5700K | >70 | 6000 | 5 | 1.05 |
| On Request | LEDFL080I5-04L HE | 80 | 5700K | >70 | 9600 | 2 | 2.3 |
| On Request | LEDFL100I5-04L HE | 100 | 5700K | >70 | 12000 | 2 | 2.35 |
| On Request | LEDFL120I5-04L HE | 120 | 5700K | >70 | 14400 | 2 | 2.4 |
