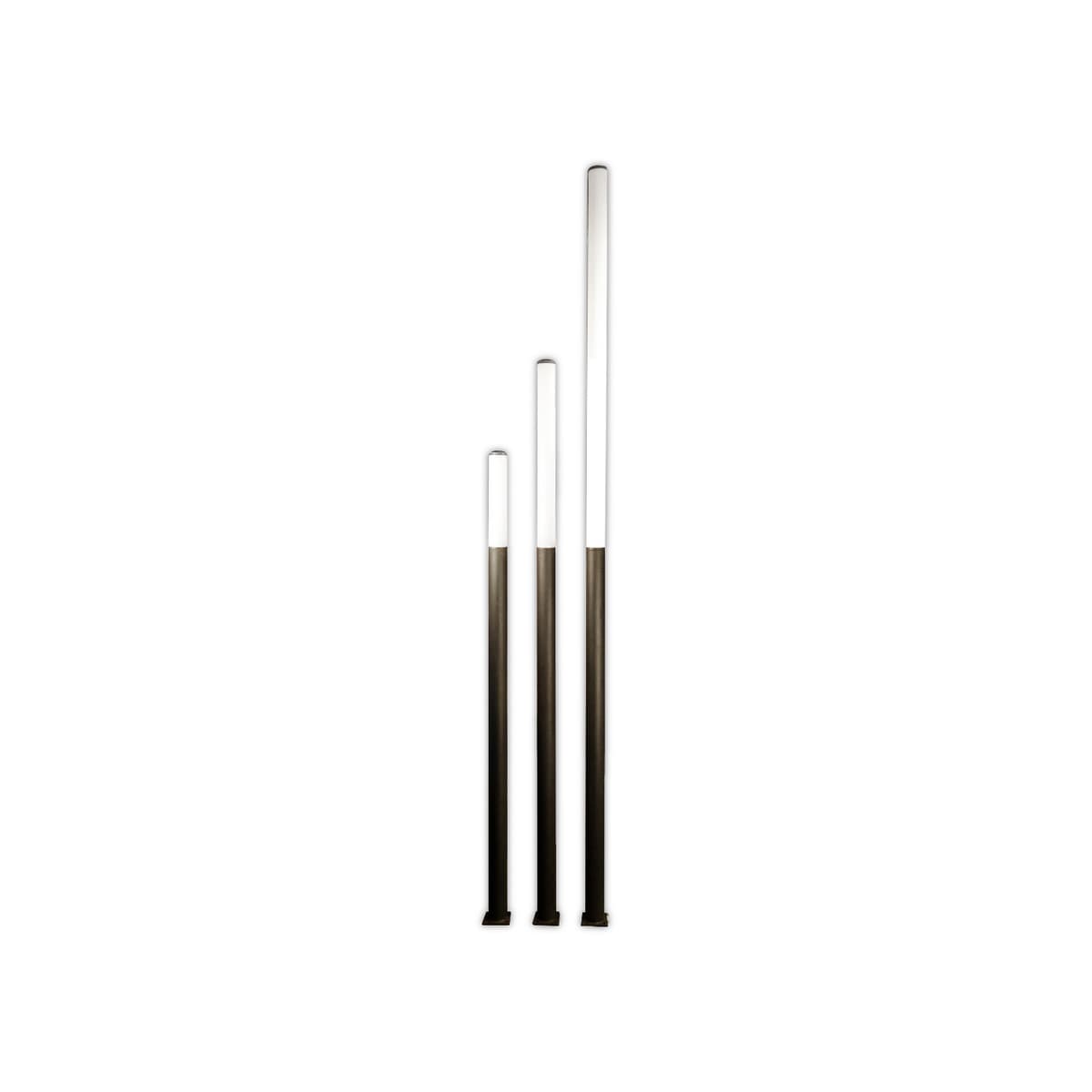

Cylindrical Column Light
These luminaires offer general ambient light in open spaces giving a sense of security in night-time. Designed to provide rotationally symmetrical illumination, and 360° light emission. LED Circular columnar light pole with 2-meter-long diffused light output aesthetically as roadway and pathway illumination.
Applications
ResidentialGardensPark & LawnsArchitectural
Features
Columnar light output.Sleek design with light soothing to the eye.Architectural light with pole mounting.
Specifications
| Housing & Finish | Mild Steel housing with epoxy grey powder coating |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 4.5 kV |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 240V AC |
| Average life span at L70B50 | 25000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | As in diagram - four foundation bolts needed |
| Ingress protection & Impact resistance | IP65, IK05 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot |
|---|---|---|---|---|---|---|
| On Request | DCL4060I3-01 | 60 | 3000K | >70 | 4800 | 1 |
