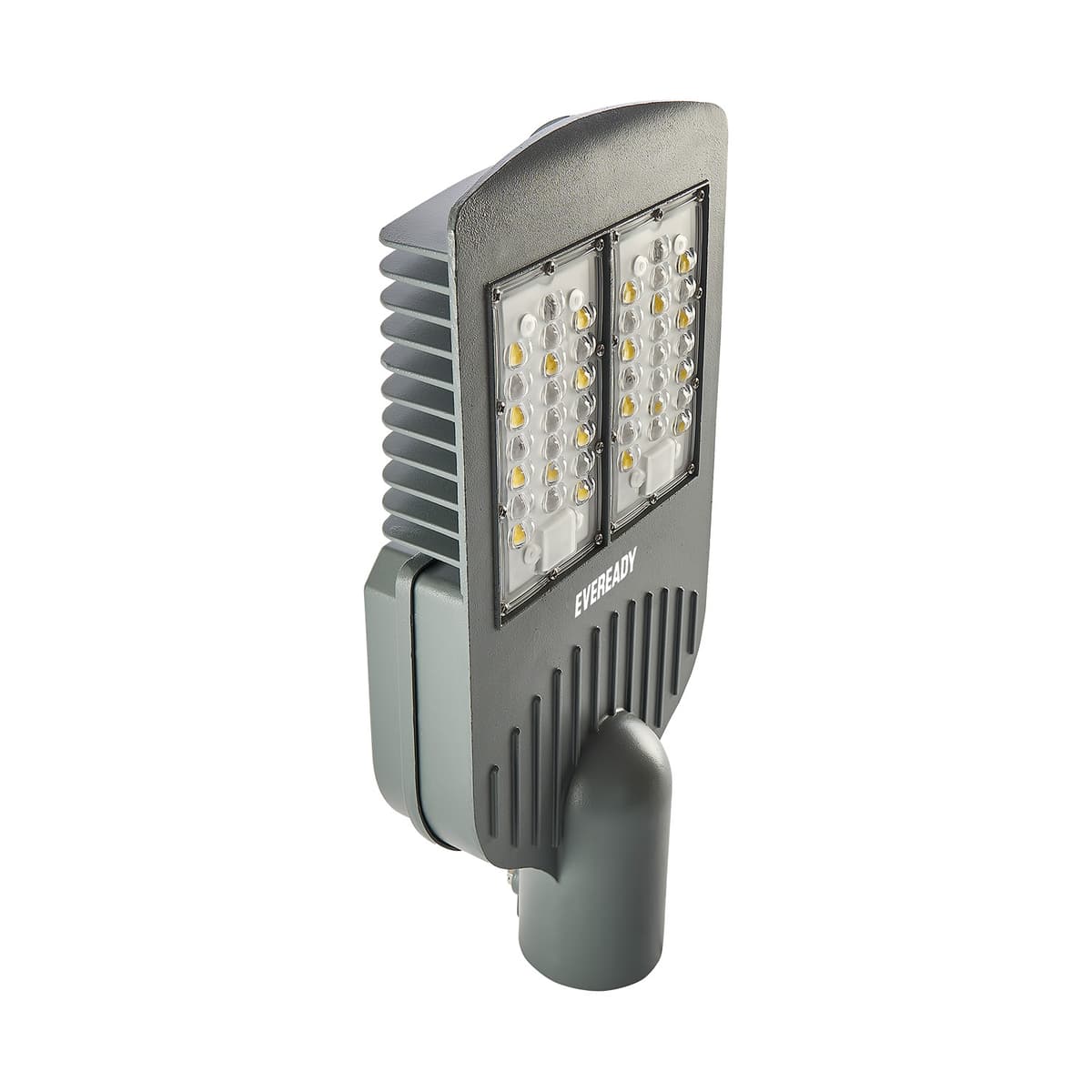

Citylite PC
Aesthetically designed, energy efficient LED street light with an urban look for main roads, secondary roads and gated communities. This sturdy product is made up of a pressure die-cast aluminium housing and has top opening driver compartment. The IK08 street light comes with Potted driver which has 5kV & 10kV external surge protection. It has polycarbonate diffuser cum lens with high power LEDs for better light distribution. Lens fixed with silicon gasket for better ingress protection.
Applications
Inustrial ParksPrimary RoadsCity Roads
Features
Clear polycarbonate diffuser embedded lens for better light distribution.Innovative heat sink design with modular lenses for efficient light distribution.High surge protection with 5kV internal and 10kV external surge protection device.Top opening control gear for easy maintenance.
Specifications
| Housing & Finish | Pressure die-cast aluminium housing with epoxy grey powder coating finish |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 5kV inbuilt and 10kV external |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 50000 Hours |
| Operating Temperature | 10℃ to +50℃ |
| Mounting arrangement | Pole Mounting |
| Ingress protection & Impact resistance | IP66, IK08 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6R57PBH8030 | LEDSL030I5-PC HE | 30 | 5700K | >70 | 3600 | 1 | 0.7 |
| On Request | LEDSL036I5-PC HE | 36 | 5700K | >70 | 4320 | 1 | 0.7 |
| 6R57PPH7045 | LEDSL045I5H-PC | 45 | 5700K | >70 | 5400 | 1 | 0.8 |
| 6R57PBH7060 | LEDSL060I5H-PC | 60 | 5700K | >70 | 7200 | 1 | 1.2 |
| 6R57PBHH072 | LEDSL072I5H-PC | 72 | 5700K | >70 | 8640 | 1 | 1.2 |
| 6R57PBD7090 | LEDSL090I5-PC | 90 | 5700K | >70 | 10800 | 1 | 2.1 |
| 6R57PBD7120 | LEDSL120I5-PC | 120 | 5700K | >70 | 14400 | 1 | 2.7 |
| 6R57PBD7150 | LEDSL150I5-PC | 150 | 5700K | >70 | 18000 | 1 | 2.7 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
