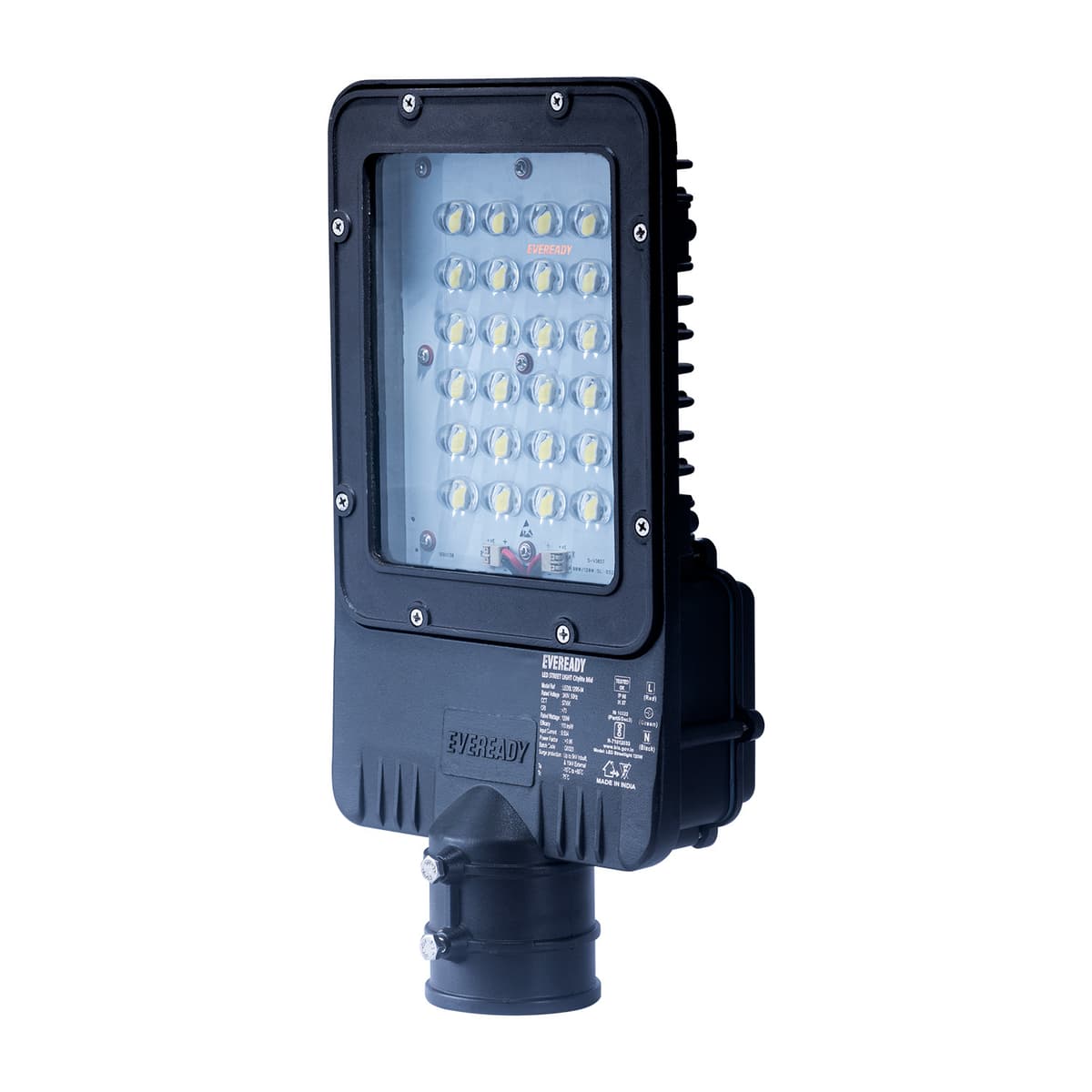

Citylite MID

Citylite Mid LED Street Lights with Potted Driver are used for city roads, arterial roads and multi-level junctions. Made with a single piece of pressure die-cast aluminium housing and top opening driver compartment makes it sturdy & easy for maintenance. It has toughened glass with secondary optics and individual high-power LEDs for better light distribution and control. IP66 degree of protection and Potted Driver with 5KV internal and 10KV external surge protection are provided for increased safety.

Applications

HighwaysIndustrial ParksMunicipalities

Features

Mentioned Lumens Efficacy USP.Toughened glass primary optics with lens for better light distribution.Innovative heat sink design with modular lenses for efficient light distribution.High surge protection with 5KV internal and 10KV external surge protection devices.Top opening control gear for better serviceability.

Specifications

Housing & Finish	Pressure die-cast aluminium housing with epoxy grey powder coating finish
Power Factor	≥ 0.95
Total Harmonic Distortion	≤ 10%
Surge Protection	Up to 5kV inbuilt and 10kV external
Input Voltage	240V 50Hz
Operating Voltage Range	140V - 280V AC
Average life span at L70B50	50000 Hours
Operating Temperature	-10℃ to +50℃
Mounting arrangement	Pole Mounting
Ingress protection & Impact resistance	IP66, IK07

Product Ordering Details

Ordering Code	Product Cat Ref	Input Power (W)	CCT	CRI	Luminous Flux (Lumens)	Case Lot	Weight
6R30PBAB090	LEDSL090I3-04	90	3000K	>70	9000	1	2.1
6R57PBAB090	LEDSL090I5-04	90	5700K	>70	9900	1	2.1
On Request	LEDSL110I3-04	110	3000K	>70	11000	1	2.3
On Request	LEDSL110I5-04	110	5700K	>70	12100	1	2.3
6R30PBAB120	LEDSL120I3-04	120	3000K	>70	12000	1	2.3
6R57PBAB120	LEDSL120I5-04	120	5700K	>70	13200	1	2.3
On Request	LEDSL130I3-04	130	3000K	>70	13000	1	3.5
On Request	LEDSL130I5-04	130	5700K	>70	14300	1	3.5
On Request	LEDSL150I3-04	150	3000K	>70	15000	1	3.5
6R57PBD7150	LEDSL150I5-04	150	5700K	>70	16500	1	3.5
