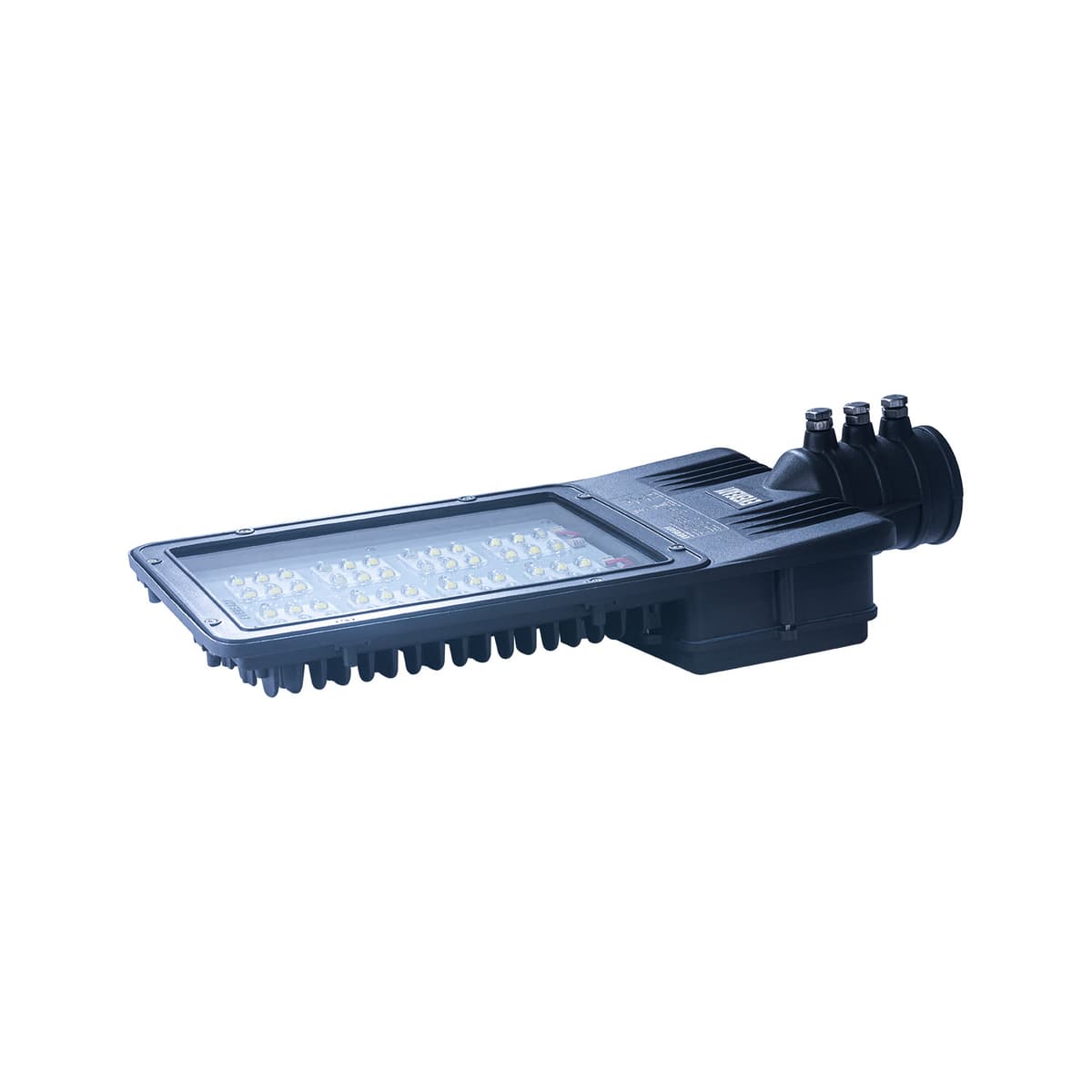

Citylite MAX
LED Street lights for National highways, main roads, arterial roads, multi-level junctions and city roads are made with a single piece of pressure die-cast aluminium housing and top opening driver compartment. It has toughened glass with secondary optics and individual high-power LEDs for better light distribution and control. Enhanced safety features of IP66, IK07 and Potted driver with 5kV & 10kV external surge protection makes it durable.
Applications
City RoadsHighwaysIndustrial ParksMunicipalities
Features
Best in class lumen efficacy of 130 lm/watt.Toughened glass primary optics with compound lens for better light distribution.Innovative heat sink design with modular lenses for efficient light distribution.High surge protection with 5KV internal and 10KV external surge protection devices.Top opening control gear for better serviceability.
Specifications
| Housing & Finish | Pressure die-cast aluminium housing with epoxy grey powder coating finish |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 5kV inbuilt and 10kV external |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 50000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Pole Mounting |
| Ingress protection & Impact resistance | IP66, IK07 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| 6R57PBD7180 | LEDSL180I5-04 | 180 | 5700K | >70 | 19800 | 1 | 4.9 |
| 6R57PBD7200 | LEDSL200I5-04 | 200 | 5700K | >70 | 22000 | 1 | 5.0 |
| 6R57PBF7250 | LEDSL250I5-04 HE(NHAI) | 250 | 5700K | >70 | 32500 | 1 | 6.2 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
