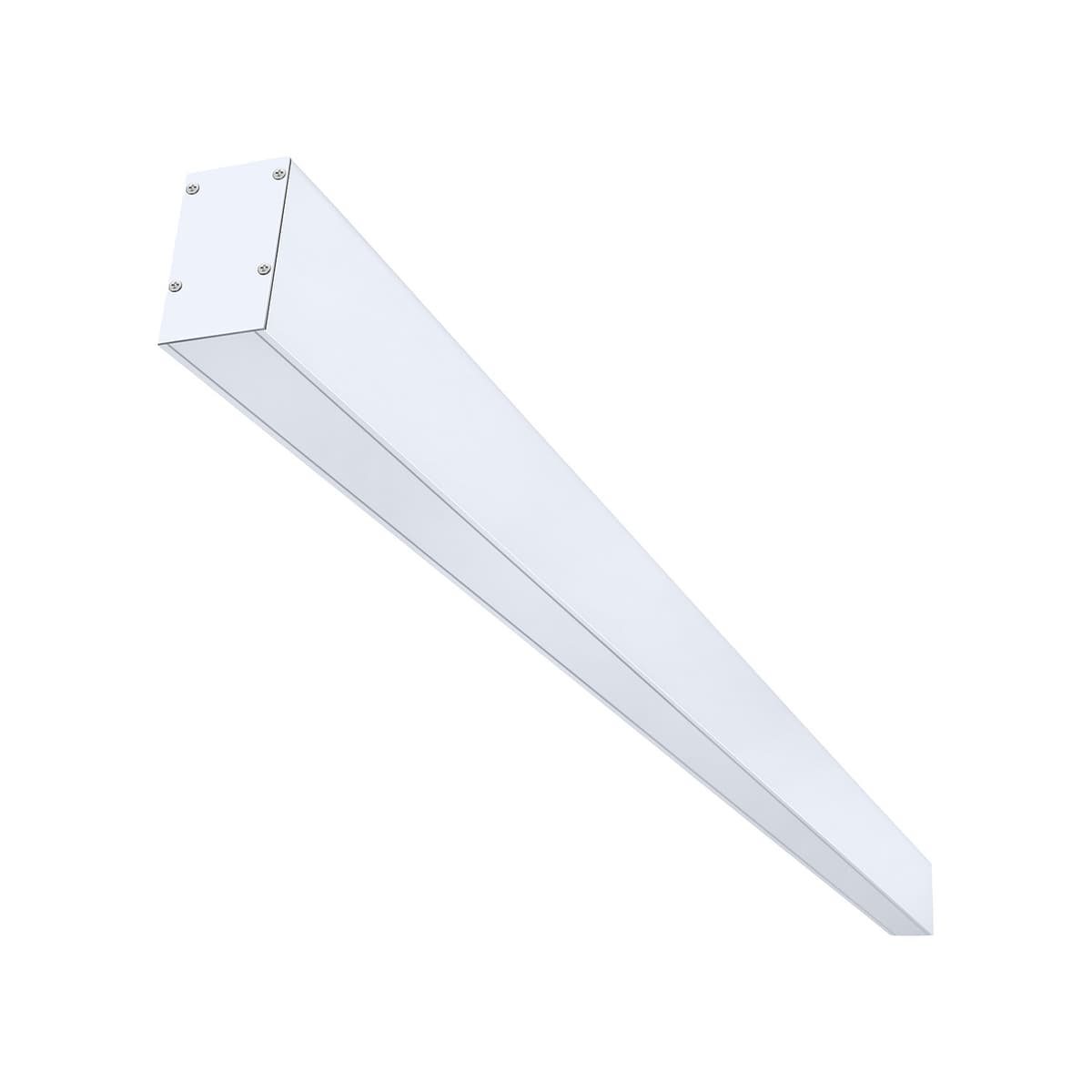

Aristocrat UD
Suspended mounted linear extrusion up down series designed with high quality aluminum extrusion with extruded PMMA milky diffuser for uniform & glare free lighting, it also offers flexibility to users to go with multiple design options suitable for available space.
Applications
Commercial HallOpen Plan OfficesBFSIConference HallHospitality
Features
Sturdy luminaire made with high quality aluminium extrusion housing for better thermal management & corrosion free life.Up Down Light offers 75% light distribution at down side and 25% and upside.Super-efficient PMMA milky diffuser for spotless glare free lighting.The product is available with Warm white, Neutral white, White & cool white options.As per LG7 guidelines relevant to indoor lighting environments.
Specifications
| Housing & Finish | Aluminium extrusion with anodizing |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 4kV Inbuilt |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 25000 |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Suspended |
| Ingress protection & Impact resistance | IP20, IK03 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight | Remarks |
|---|---|---|---|---|---|---|---|---|
| 6LAF308DU40 | LEDLLUD040I3 | 40 | 3000K | >80 | 4000 | 4 | 1.85 | 4FT |
| 6LAF408DU40 | LEDLLUD040I4 | 40 | 4000K | >80 | 4000 | 4 | 1.85 | 4FT |
| 6LAF578DU40 | LEDLLUD040I5 | 40 | 5700K | >80 | 4000 | 4 | 1.85 | 4FT |
| 6LAF658DU40 | LEDLLUD040I6 | 40 | 6500K | >80 | 4000 | 4 | 1.85 | 4FT |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
