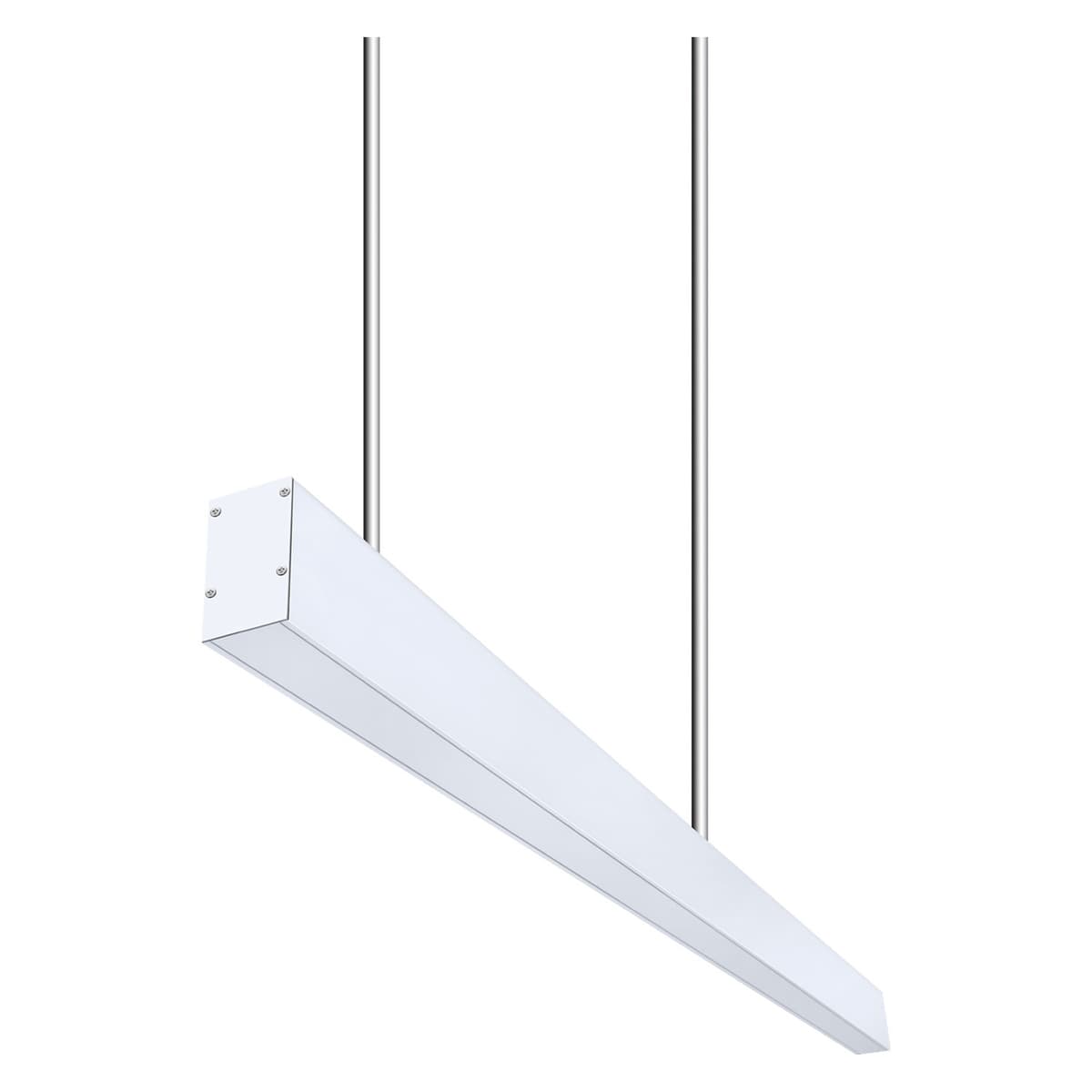

Aristocrat TD
Linear extrusion suspended fixtures series designed with high quality aluminium extrusion with extruded PMMA milky diffuser for uniform and glare-free lighting. This luminaire also offers tunable and dimmable seamless colour changing feature from warm white to neutral white to cool white. It helps in reducing stress and fatigue in employees working for extended period in offices and modern workspaces. Also has dimming feature to adjust brightness, to improve efficiency of the employees which can be managed through a hand-held remote.
Applications
Open Plan OfficesHospitalsIT/ITES/BPOOffices / Conference RoomsCommercial Complexes
Features
Linear suspended lighting fixture matching the circadian rhythm of human beings which regulates the biological process of human behaviour.The fixture comes with 0-10 analog dimming which can be managed through a hand held remote.Tunable light fixture with colour change options from Warm white to cool white.
Specifications
| Housing & Finish | Aluminium extrusion with White Powder coating |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 2.5kV Inbuilt |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 150V - 280V AC |
| Average life span at L70B50 | 25000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Suspended |
| Ingress protection & Impact resistance | IP20, IK03 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight | Remarks |
|---|---|---|---|---|---|---|---|---|
| 6LAFTD8DB30 | LEDLL030I6-TD | 20 | 3000K - 6500K | >80 | 2700 | 4 | 1.85 | 4 FT |
| 6PR24G8RF36 (Remote code) | LEDPLR24GRF-04 TD | NA | NA | NA | NA | 1 | 0.1 | - |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
