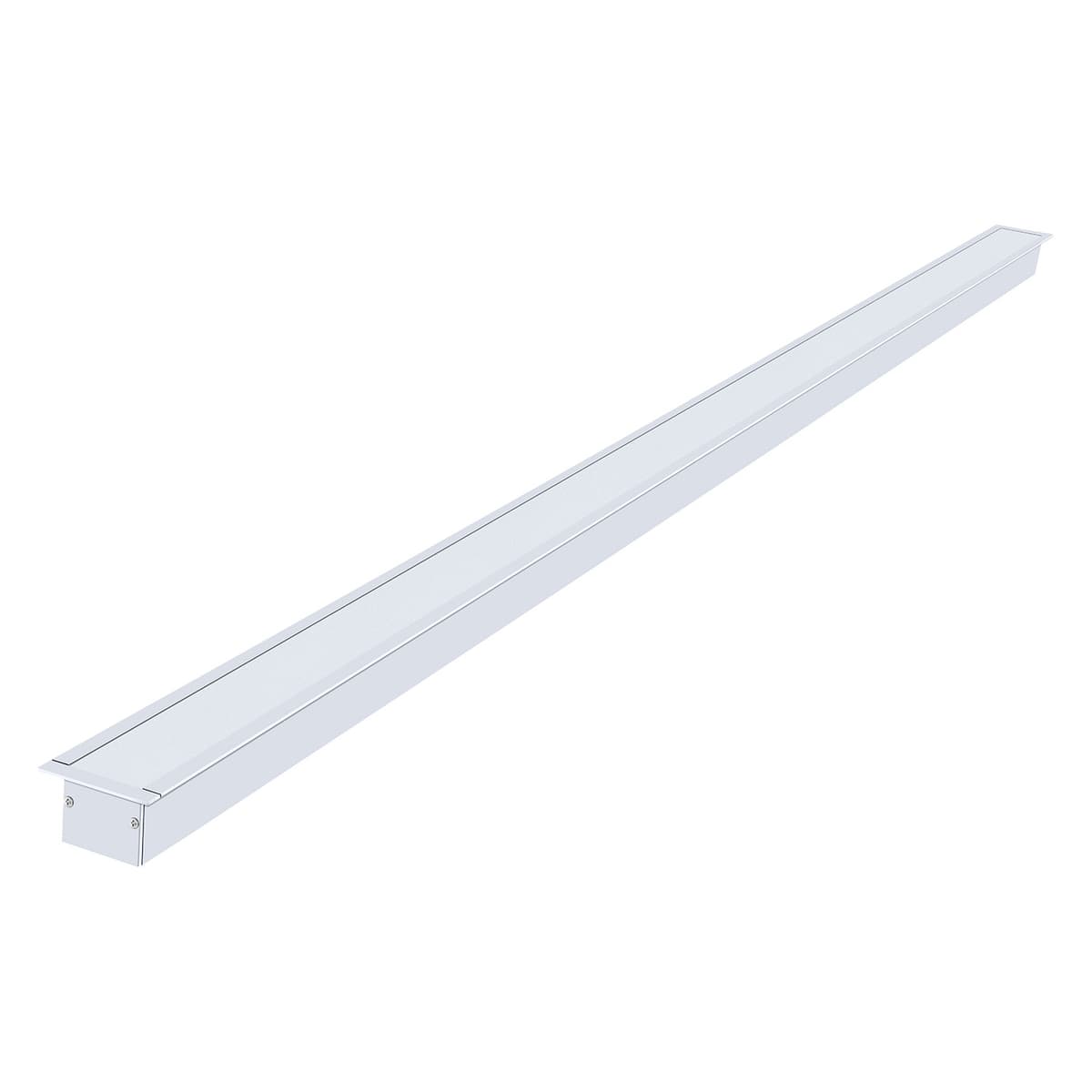

Aristocrat R
Recess mounted linear extrusion series designed with high quality aluminium extrusion with an extruded PMMA milky diffuser for uniform & glare-free lighting. It also offers flexibility to users to go with multiple design options suitable for the available space.
Applications
BFSICommercial ComplexesHospitalityIT / ITES Offices
Features
Sturdy luminaire made with high quality aluminium extrusion housing for better thermal management & corrosion free life.Super-efficient opal acrylic diffuser for spotless glare free lighting.The product is available with Warm white, Neutral white, White & cool white options.
Specifications
| Housing & Finish | Aluminium extrusion with White powder coating |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 4kV inbuilt |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 150V - 280V AC |
| Average life span at L70B50 | 25000 |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Recess |
| Ingress protection & Impact resistance | IP20, IK03 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight | Remarks |
|---|---|---|---|---|---|---|---|---|
| 6LAF308RB30 | LEDRLL030I3 | 30W | 3000K | >80 | 3000 | 4 | 1 | 4 ft |
| 6LAF408RB30 | LEDRLL030I4 | 30W | 4000K | >80 | 3000 | 4 | 1 | 4 ft |
| 6LAF658RB30 | LEDRLL030I6 | 30W | 5700K | >80 | 3000 | 4 | 1 | 4 ft |
| On Request | LEDRLL040I3 | 40W | 3000K | >80 | 4000 | 4 | 1 | 4 ft |
| On Request | LEDRLL040I4 | 40W | 4000K | >80 | 4000 | 4 | 1 | 4 ft |
| On Request | LEDRLL040I5 | 40W | 5700K | >80 | 4000 | 4 | 1 | 4 ft |
| On Request | LEDRLL040I6 | 40W | 6500K | >80 | 4000 | 4 | 1 | 4 ft |
| 6LAF308RB30 | LEDRLL090I4 | 50W | 4000K | >80 | 9000 | 1 | 3 | 12 ft |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
